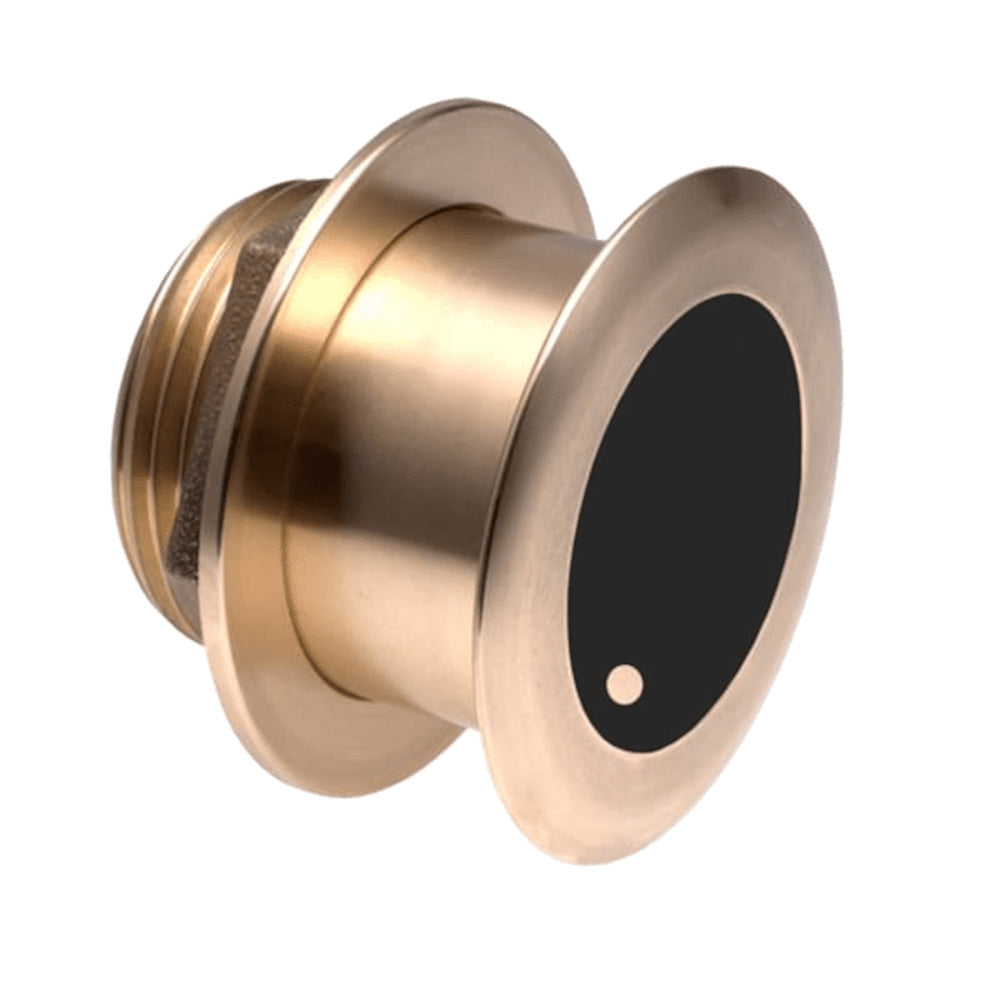

The Airmar B164 is a dual-frequency, 1 kW thru-hull transducer built for center-console and trailered vessels with hull deadrise angles between 0° and 7°. Its Tilted Element™ design orients the ceramic arrays within a flush bronze housing so the beam fires straight down — no fairing required. The low-profile housing protrudes less than 6.35 mm below the hull, allowing the boat to sit safely on trailer rollers and bunks without interference. A Mix & Match cable (sold separately) is required to connect to your display.

Features:

• Depth and fast-response water-temperature sensing
• 1 kW power output compatible with any 600 W or 1 kW echo sounder
• 50 kHz element with a 22° beamwidth reaches depths to 549 m (1,800')
• 200 kHz element with a 6° beamwidth reaches depths to 244 m (800')
• Patented Xducer ID® technology for automatic transducer recognition
• Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull — no effect on running performance
• Tilted Element™ design delivers a perfectly vertical beam without a fairing
• Engineered for center-console and trailered boats up to 11 m (36') LOA
• Also available in stainless steel housing (SS164) for use in all hull materials

Specifications:

• Frequency Band: 50/200 kHz
• Power Rating: 1 kW
• Functions: Depth, Temperature
• Conventional Beam: 22°x20° / 6°
• Single or Dual Frequency: Conventional Dual Frequency
• Max Depth: Low frequency — 549 m (1,800'); High frequency — 244 m (800')
• Tilt Angle: 0°
• Tilted Element: Yes
• Deadrise Range: 0° to 7°
• Max Deadrise: Up to 7°
• Mounting Style: Tilted Element Thru-Hull
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36')
• Material: Bronze
• Acoustic Window: Urethane
• Retractable Housing: No
• Hole Size: 95 mm (3-3/4")
• Usable Shaft Length: 71 mm (2.80")
• Cable Length: 2 m (6.5')
• Connector: Airmar 9-Pin (MM1)
• Sensor Connector: MM1
• Display Connector: Mix & Match cable required (sold separately)
• Mix and Match Series: 9-Pin 1000 Watt
• Weight: 2.7 kg (6 lbs)
• Country of Origin: USA
• Common Use: Leisure/Yachting, Fishing
