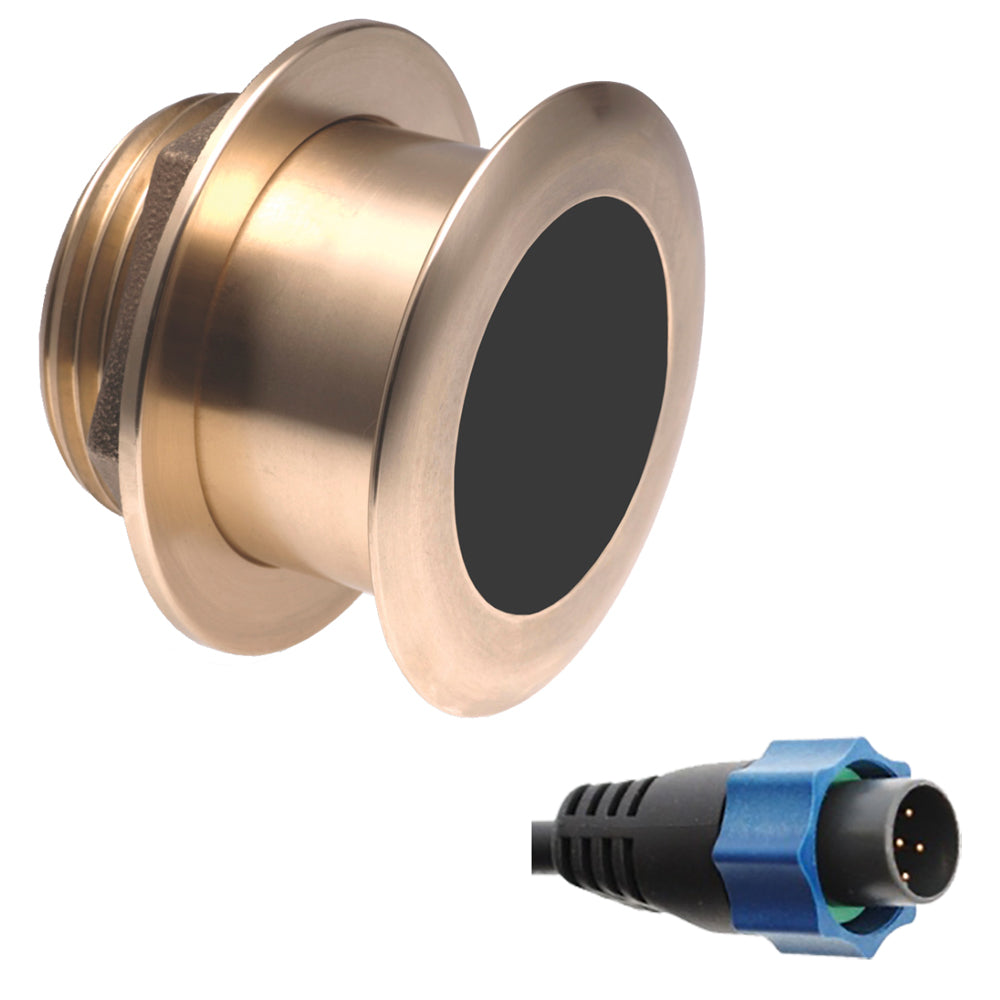

The Airmar B164 is a low-profile bronze thru-hull transducer built for fast, trailered, and tournament sport-fishing vessels where an external fairing block isn't an option. Its zero-degree tilt suits hull deadrise angles between 0 and 7 degrees, and an integrated fast-response temperature sensor rounds out its capabilities. This Blue Connector (BL) version is compatible with Lowrance HDS series fishfinders and sounders using the standard Lowrance 7-pin blue connector, as well as the Simrad NSE series.

Specifications:

• Power output: 1,000W (1kW)
• Tilt: 0° (for hull deadrise angles of 0–7°)
• Hull installation hole size: 3.875" (98mm)
• Beam angle: 22 x 20° at 50kHz; 6 x 6° at 200kHz
• Maximum depth at 50kHz: 1,200–1,800 ft
• Maximum depth at 200kHz: 500–800 ft
• Construction: Bronze, low-profile
• Temperature sensor: Fast-response, integrated
• Connector: Standard Lowrance 7-pin blue connector
• Compatible with: Lowrance HDS series and other Lowrance units; Simrad NSE series

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
