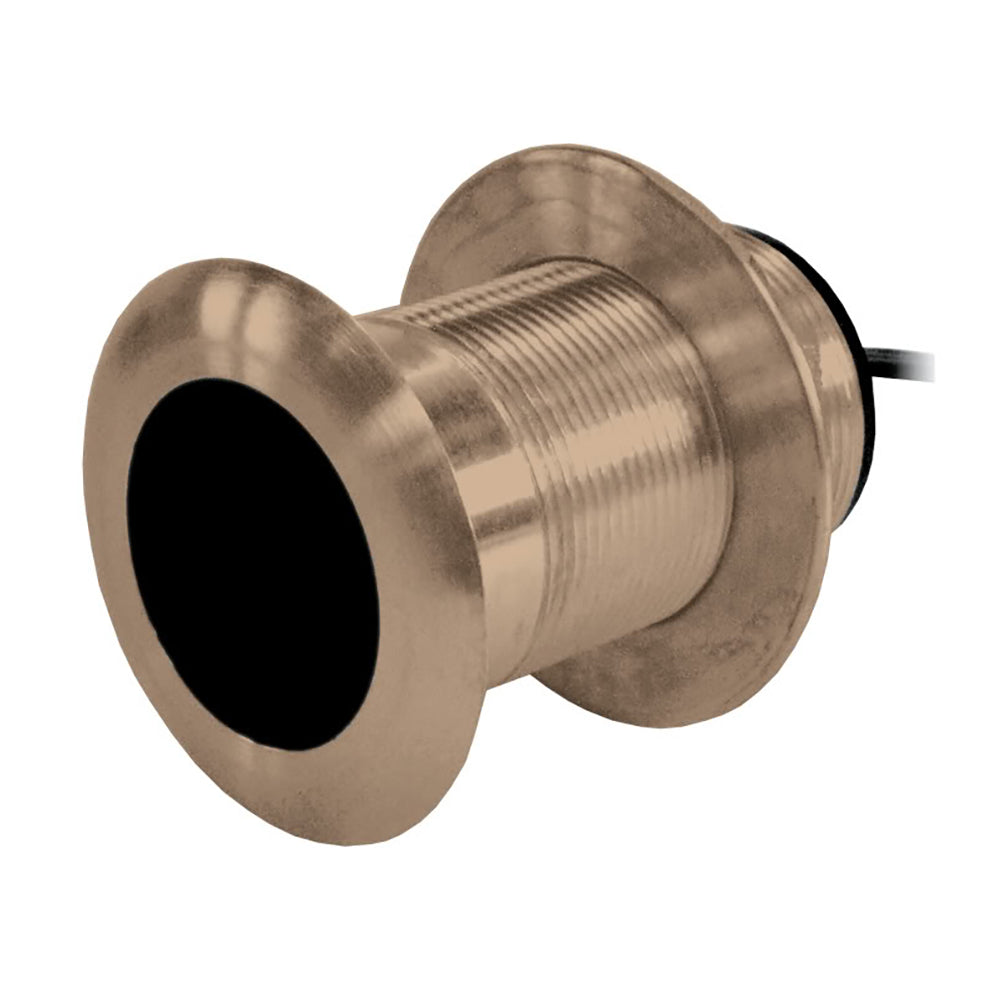

The Airmar B117 is a 50/200 kHz dual-frequency transducer built around a single ceramic element housed in a low-profile bronze through-hull. With just 5 mm (3/16") projecting beyond the hull surface, it keeps drag to a minimum while delivering reliable depth and temperature data. Designed for center-console and trailered vessels 8 m (25') and larger, it pairs directly with Raymarine CP370 and DSM300 units via its factory-installed Ray connector.

Specifications:

• Housing material: Bronze
• Function: Depth and temperature
• Frequency: 50/200 kHz, dual-frequency, single ceramic element
• Maximum depth range — 50 kHz: 800–1,200 ft; 200 kHz: 400–700 ft
• Cone angle: 50 kHz — 45°; 200 kHz — 12°
• RMS power: 600 W
• Hull projection (low-profile): 5 mm (3/16")
• Usable shaft length: 66.5 mm (2.62")
• Cable length: 10 m (33')
• Connector: Ray (for Raymarine CP370 & DSM300)
• Recommended boat size: 8 m (25') and up
• Ideal application: Center-console and trailered boats
• Replacement nut: 405

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
