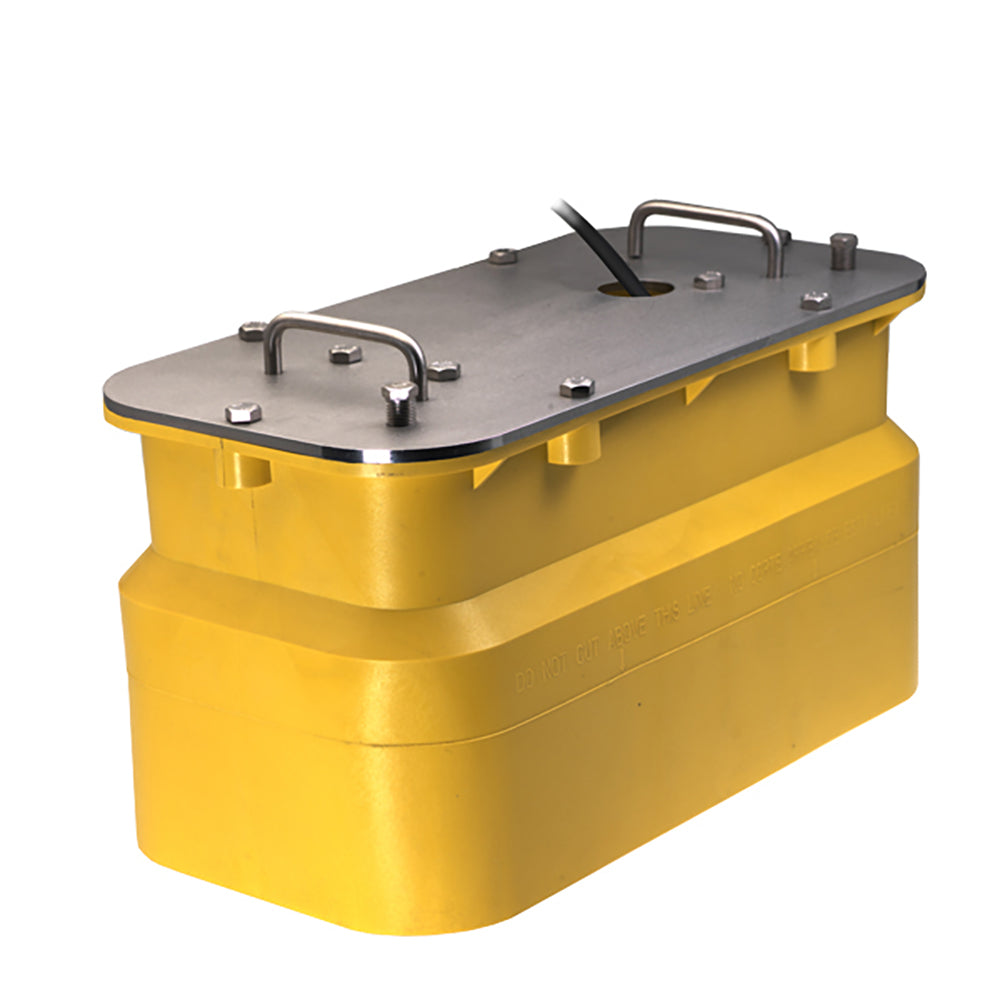

The Airmar 599 LH is the elite model in the Chirp In-Hull product line, delivering dual-frequency broadband performance in a single installation. Low-frequency CHIRP sweeps 28–60 kHz while high-frequency CHIRP spans 130–210 kHz, producing up to 112 kHz of total bandwidth with 5 to 10 times greater detail and resolution than conventional transducers. Bottom detection reaches depths of 3,000 m (10,000 ft), with resolution sharp enough to distinguish individual baitfish, game fish, and underwater structure — suited for recreational anglers, charter captains, and commercial fishermen working inshore, offshore, deep-water canyons, and sea-mount terrain.

Specifications:

• Function: Depth only
• Low CHIRP range: 28 kHz to 60 kHz | Beamwidth: 23° to 9°
• High CHIRP range: 130 kHz to 210 kHz | Beamwidth: 8° to 4°
• Total bandwidth: 112 kHz from a single transducer
• Covers 28, 38, 50, and 200 kHz fishing frequencies plus all frequencies within the bandwidth
• Fishing profile: Recreational and commercial inshore and offshore fishing, including deep-water canyon and sea-mount tracking
• Transducer housing: Epoxy
• Compatible hull type: Solid fiberglass only
• Hull deadrise: 0° to 22°
• Acoustic window: Epoxy/urethane
• All mounting hardware included, including tank
• Weight: 19.7 kg (43.4 lb)
