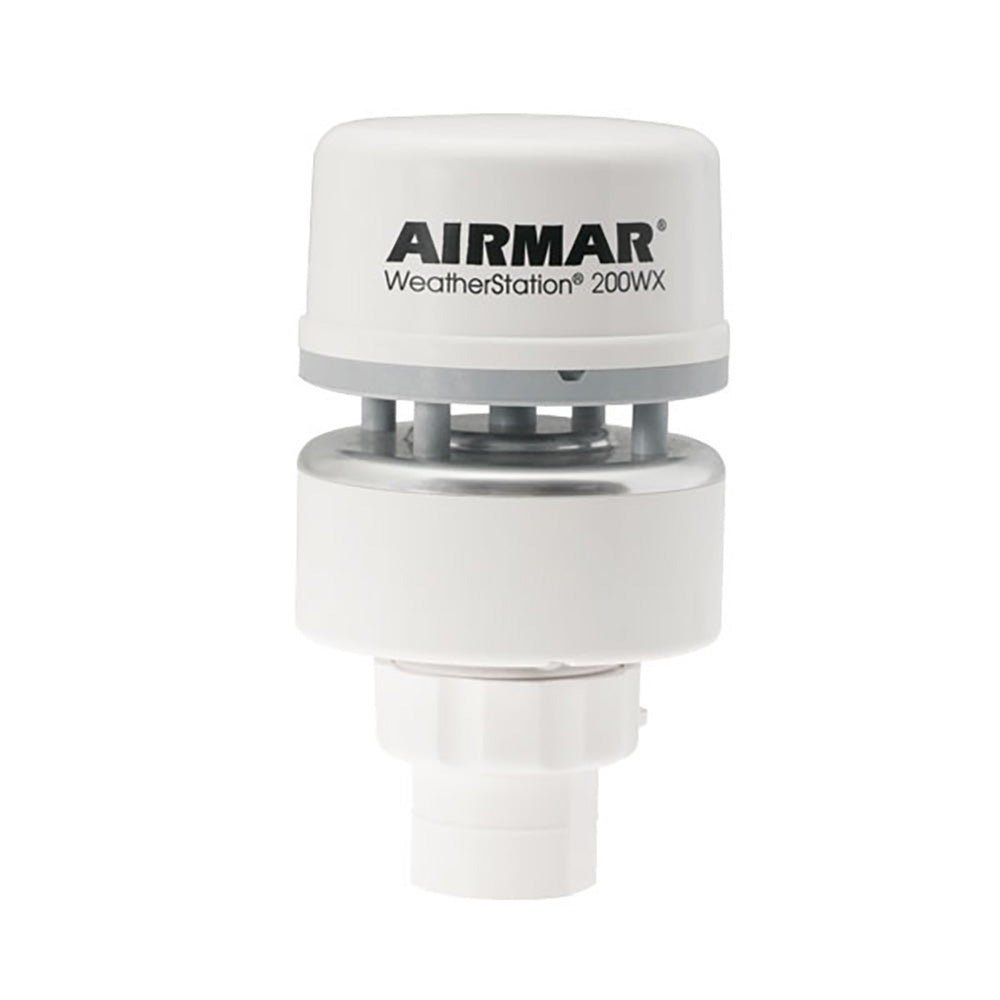

The Airmar 200WX WeatherStation® is engineered for mobile and land-based weather monitoring on moving platforms — from TV broadcast vehicles to military applications. Its ultrasonic wind sensors, integrated 10 Hz GPS, 3D compass, and multi-axis gyro work together to compute theoretical wind speed and direction from apparent wind data, vehicle speed, and heading. The compact, rugged housing delivers sensor-rich performance even across hilly and mountainous terrain.

Note: A cable is required for operation and is not included — purchase separately.

Specifications:

• Ultrasonic measurement of apparent and theoretical wind speed and direction
• Barometric pressure sensor
• Air temperature and wind chill temperature measurement
• Relative humidity sensor (field-serviceable option)
• Calculated dew point and heat index
• GPS position, speed over ground, and course over ground via internal 10 Hz GPS
• Three-axis solid-state compass with dynamic stabilization
• Three-axis rate gyro for rate-of-turn data
• Three-axis accelerometer for pitch and roll information
• Housing rated IPX6 for water-ingress protection (IPX4 when relative humidity module is installed)
• Data output via single cable (various lengths available): NMEA 0183/ASCII serial data over RS-232 and NMEA 2000 over CAN

Relative Humidity Module Option:

• Enables dew point and heat index calculations
• Field serviceable
• Housing rated IPX4 when installed

Resources:

• Owner's Manual (PDF)

Returns: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
