ACR RCL-300A HID Searchlight - 12V/24V

The ACR RCL-300A pairs twin 35W metal halide lamps to produce 1,000,000 peak candle power — more than 500,000 candela per lamp — in a sealed, triple-primed marine-grade aluminum housing built to handle continuous saltwater exposure. Remote operation via the ACR Point Pad™ controller is intuitive, and the built-in XRCiZ™ auto-exercise function cycles the light assembly every 30 days to keep bearings and electrical contacts corrosion-free. Compatible with both 12V and 24V systems, the RCL-300A suits recreational and commercial vessels alike.

Features:

• Internal elevation mechanism provides precise pitch control of the beam
• Supports up to three Point Pad™ remote units operating simultaneously
• Triple-primed, sealed marine-grade aluminum enclosure engineered for saltwater environments
• XRCiZ™ auto-exercise rotates and moves the light assembly every 30 days from activation to prevent bearing corrosion and maintain reliable electrical contacts
• Auto-return function repositions the light to forward-facing when the unit powers down
• Nylon and phenolic washers contribute to long-term saltwater resistance

Specifications:

• Color: White
• Material: Marine-grade cast aluminum, tempered glass
• Operation: Remote-controlled via Point Pad™
• Voltage Input: 12/24 VDC
• Lamp: Twin 35W metal halide lamps
• Peak Output: 1,000,000 candle power (500,000+ candela per lamp)
• Rotation: 360° continuous
• Tilt: 45°
• Light Pattern: Variable — adjustable from narrow to broad beam
• Beam Angle: 15° up, 30° down
• Dimensions (H x W x D): 12" x 13" x 9.3" (31 x 33 x 23.5 cm)
• Footprint Diameter: 9" (23 cm)
• Weight: 31 lb (14.06 kg)

In the Box:

• RCL-300A Searchlight (12/24V)
• Coaxial cable kit
• URP-102 Point Pad™

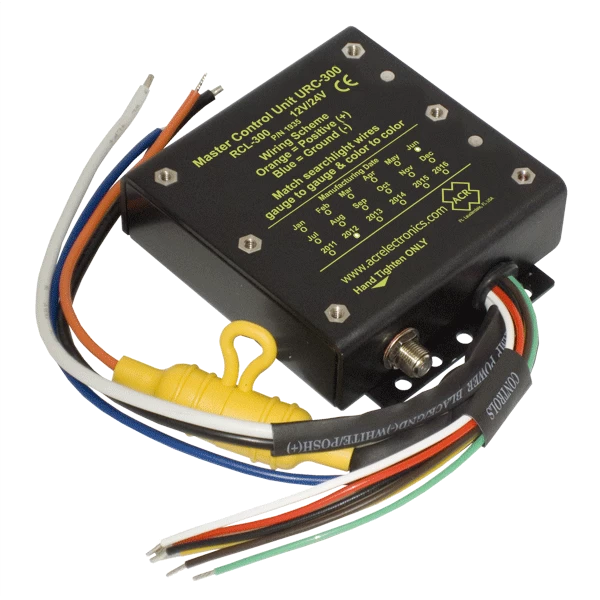

• URC-300 Master controller
• Instruction manual

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
• Quick Start Guide (PDF)
• Product Brochure (PDF)
• Product Video
