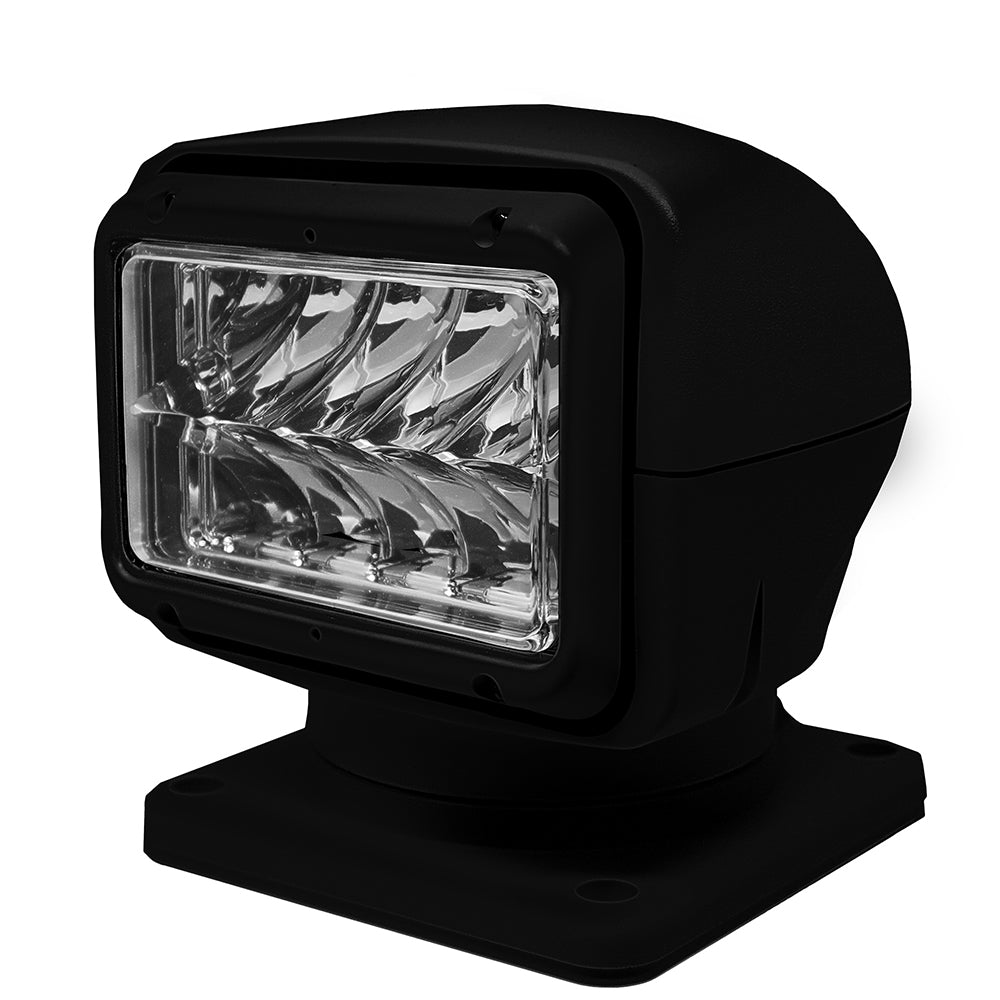

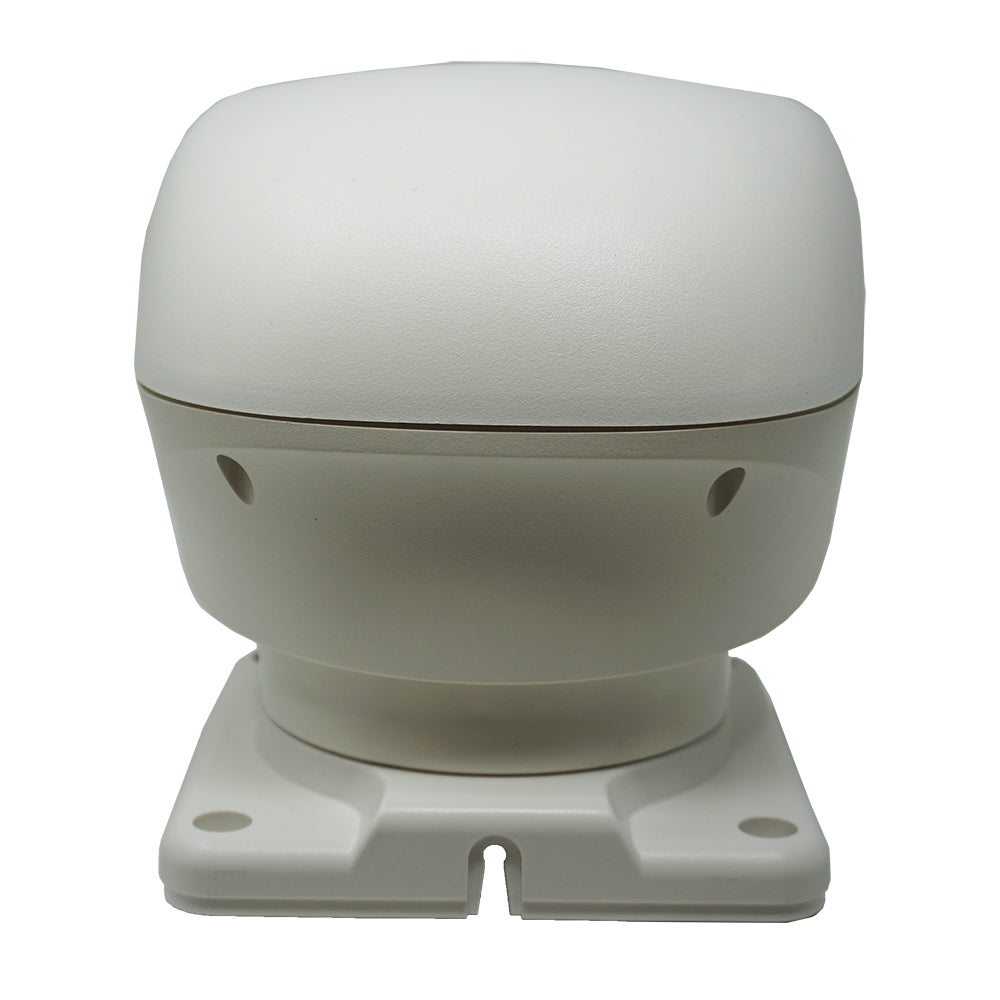

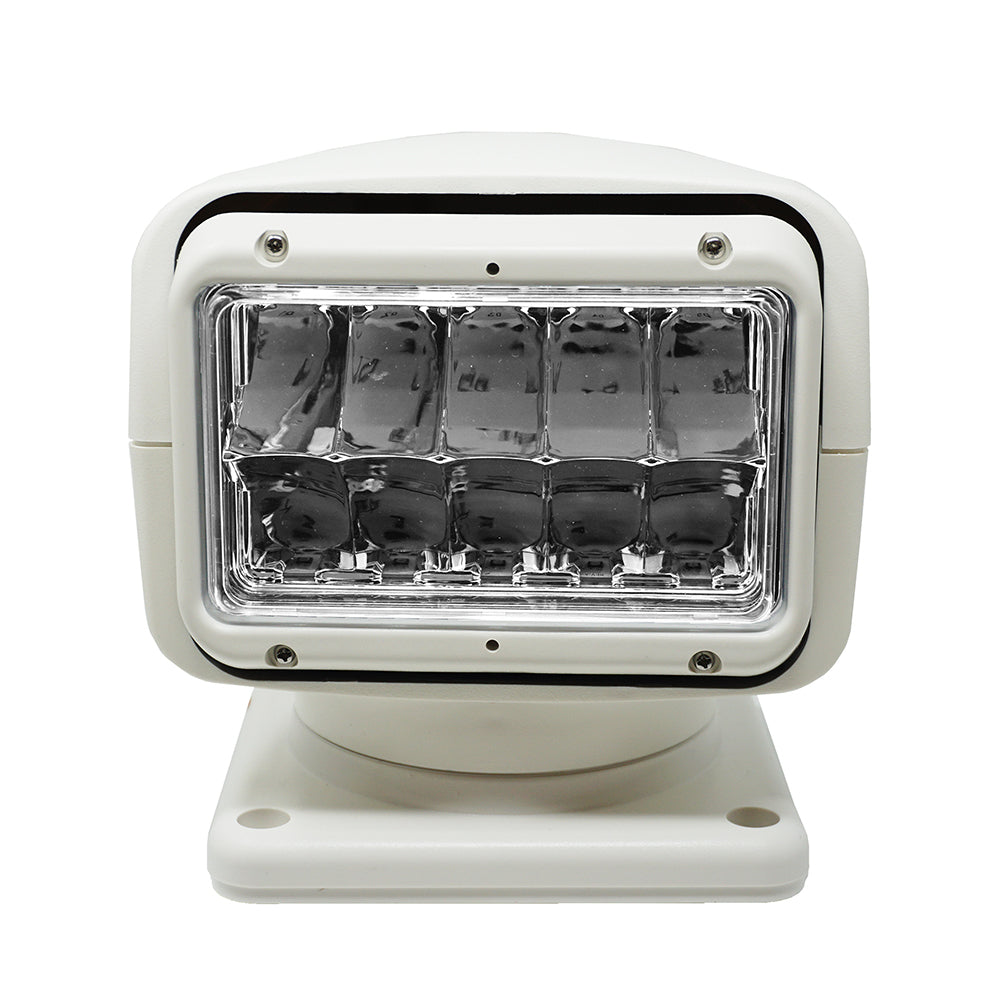

ACR Electronics ACR RCL - 95 LED Searchlight

The ACR RCL-95 LED Searchlight puts 460,000 candelas of peak beam intensity to work through 10 high-flux OSRAM LEDs with reflector optics, casting an 8-degree spot beam 4,501 feet — close to three-quarters of a nautical mile. Rated for 50,000 hours, the light offers 360° continuous rotation, 135° tilt, and an auto-home parking function, making it a practical fit for small to medium recreational powerboats and light commercial vessels. Dual control options — a wired dash-mount Point Pad and a wireless handheld remote — both support variable rotation speed with no hard stop. The LED module carries an IP68 rating, while the ASA housing and sealed lens resist UV exposure and weathering for lasting performance.

Features:

• Wireless handheld remote and wired dash-mount Point Pad both included
• Auto-home function returns the light to its programmed starting position at power-off
• 10 high-flux OSRAM LEDs with reflector optics and a 50,000-hour rated lifespan
• 360° continuous rotation at selectable fast or slow speed with no hard stop
• 135° tilt range for targeting draw bridges, buoys, and docks
• UV- and weather-resistant ASA housing with sealed lens
• Electronics housed in the IP68-rated light head for maximum protection
• Straightforward installation

Specifications:

• Color: White or Black
• Material: Acrylonitrile Styrene Acrylate (ASA)
• Operation: Wireless remote control or dash-mount Point Pad
• Voltage Input: 12/24 VDC
• Peak Beam Intensity: 460,000 candelas
• Light Pattern: Spot
• Beam Angle: 8°
• Light Distance: 4,501 ft (1,372 m)
• Rotation: 360° continuous
• Tilt: 135°
• IP Rating: IP56 (housing), IP68 (LED module)
• Dimensions (H × W × D): 5.9" × 7.1" × 7.5" (15 × 18 × 19 cm)
• Footprint Diameter: 4.92" × 4.92" (12.5 × 12.5 cm)
• Weight: 4.2 lb (1.9 kg)

In the Box:

• RCL-95 Searchlight (12/24V)
• Handheld wireless remote control
• Dash-Mount Point Pad™ controller
• Instruction manual

Resources:

• Owner's Manual (PDF)

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Available in White and Black — choose your option below.
