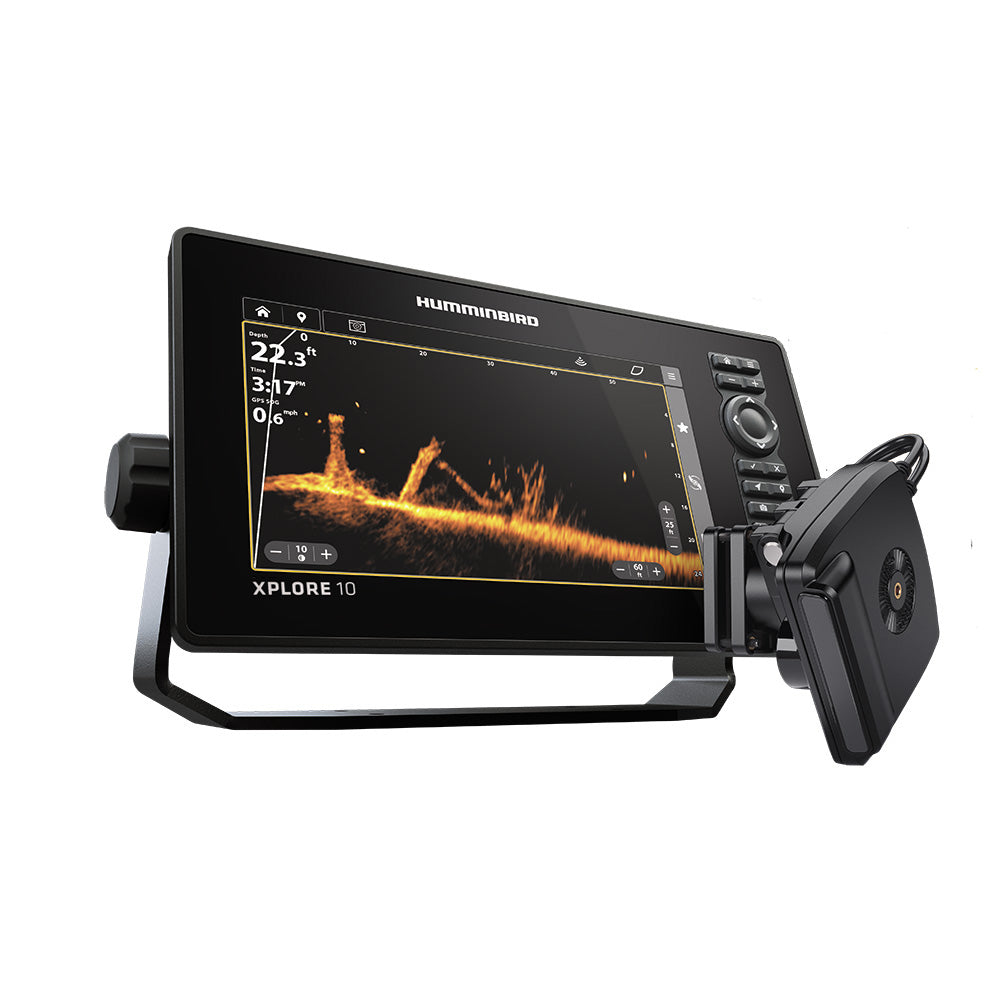

The Humminbird XPLORE 10 Control Head Only (CHO) Mega Live 2 Bundle pairs a 10-inch Full-HD touchscreen unit with the new MEGA Live 2 live sonar transducer. The XPLORE 10 CHO delivers MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar alongside internal GPS, preloaded Humminbird Basemap, and — unique to the XPLORE Series — LakeMaster and CoastMaster map cards covering 13 regions across the United States and Canada. Built for anglers who want to choose their own transducer setup or connect to a Minn Kota trolling motor with Built-in MEGA Imaging, the CHO format offers full flexibility without sacrificing any networking capability.

Control Head Only (CHO) Model:

• Does not include a transducer; designed to pair with Built-in MEGA Imaging on Minn Kota trolling motors, accessory transducers such as MEGA 360 Imaging, or shared sonar data over an existing Humminbird Ethernet network
• Preloaded views accessible through a user-friendly menu system operable via touchscreen or directional keypad

MEGA Live 2 Live Sonar Transducer:

• Live sonar transducer featuring enhanced clarity of fish and structure in real time
• Mounts to a trolling motor shaft
• Three viewing modes: Forward, Down, and Landscape
• No gaps in sonar coverage throughout the entire sonar view
• Compatible with all Humminbird APEX, SOLIX G3, and XPLORE models, as well as Minn Kota trolling motors
• Powered by MEGA Imaging for unmatched detail and clarity

Full-HD Display with Cross Touch Interface:

• 10-inch ultra-clear display with 1280H x 720V resolution
• Operated by touchscreen or keypad via Cross Touch interface

Dual Spectrum CHIRP Sonar (with optional transducer):

• Powered by a proprietary Low-Q CHIRP transducer
• Wide Mode for maximum coverage; Narrow Mode for fine detail
• Produces highly detailed fish arches and clear views of fish-holding structure and bottom composition

MEGA Side Imaging+ (with optional transducer):

• Side Imaging coverage out to 200 feet on either side of the boat
• 20% more detail and 60% more range capability compared to standard MEGA Side Imaging

MEGA Down Imaging+ (with optional transducer):

• Down Imaging coverage to 200 feet below the boat
• 20% more detail and 60% more depth capability compared to standard MEGA Down Imaging

Industry-Leading Humminbird Sonar:

• MEGA Imaging+ views up to 250 feet down and out to either side of the boat
• Dual Spectrum CHIRP delivers superior target separation and fish clarity in 2D sonar

Internal GPS and Humminbird Basemap:

• Built-in GPS with enhanced basemap displaying underwater terrain and surrounding points of interest
• Includes LakeMaster and CoastMaster map cards covering 13 regions in the United States and Canada — exclusive to the XPLORE Series

Networking:

• Wi-Fi, Bluetooth, NMEA 2000, and Ethernet networking
• Compatible with the One-Boat Network family of Humminbird, Minn Kota, and Cannon products

Specifications:

• Display Size: 10 inches
• Display Resolution: 1280H x 720V (Full HD)
• Interface: Cross Touch (touchscreen and directional keypad)
• Sonar: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
• MEGA Imaging+ Range: Up to 250 feet down; 200 feet per side
• Live Sonar: MEGA Live 2 (included) — Forward, Down, and Landscape viewing modes
• GPS: Internal
• Included Maps: Humminbird Basemap, LakeMaster and CoastMaster map cards (13 U.S. and Canada regions)
• Connectivity: Wi-Fi, Bluetooth, NMEA 2000, Ethernet
• Network Compatibility: One-Boat Network (Humminbird, Minn Kota, Cannon)
• Transducer: Not included (CHO model)
