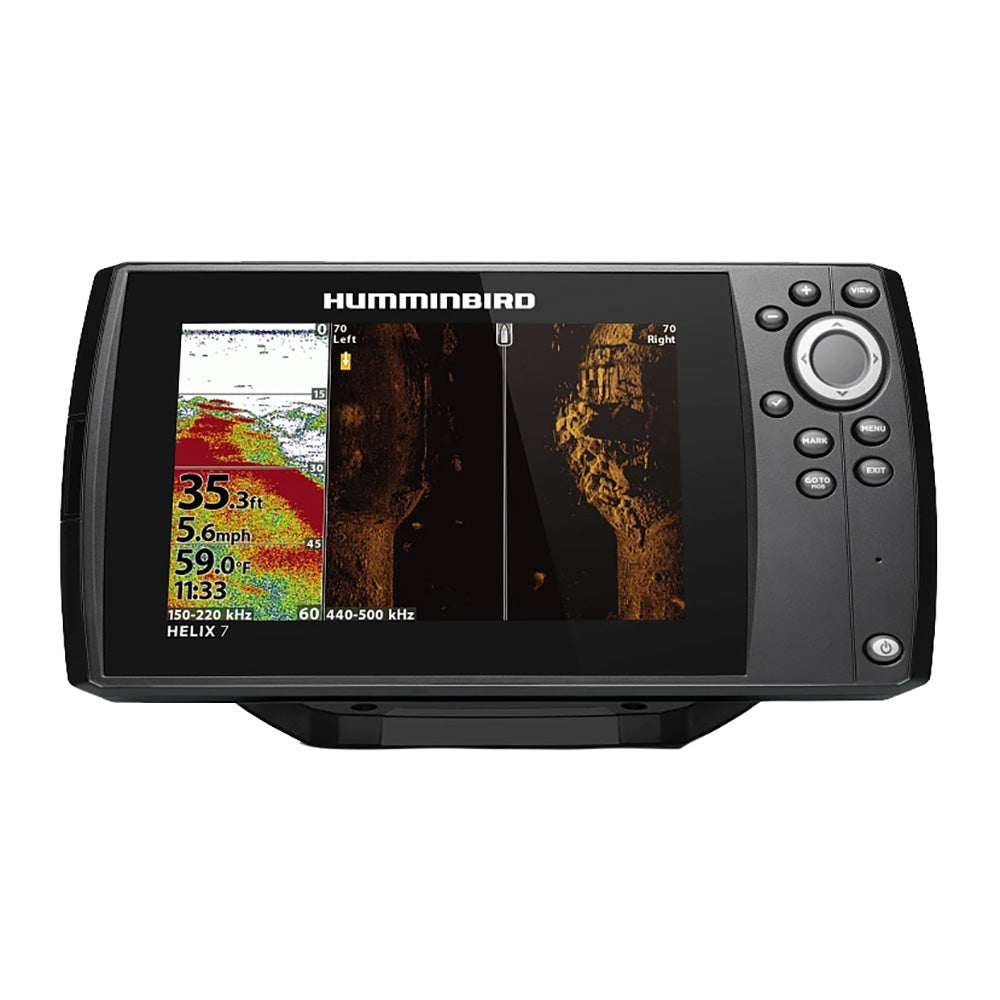

The Humminbird HELIX 7 GPS CHIRP SI G4 brings together CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, internal GPS, and Humminbird Basemap in a single unit built around a 7" high-definition 1024x600 display. Softkey controls make it straightforward to cycle through the many pre-loaded split-screen view options, while compatibility with LakeMaster, CoastMaster, and Navionics charts keeps your options open on any water.

Dual Spectrum CHIRP 2D sonar — powered by a Low-Q CHIRP transducer — lets you toggle between Wide Mode for broad coverage and Narrow Mode for fine detail. CHIRP Down Imaging cuts through noise to reveal structure directly beneath the hull, and CHIRP Side Imaging extends that clear picture out to 800 ft side-to-side. AutoChart Live lets you build real-time depth, bottom-hardness, and vegetation maps as you run, with eight hours of built-in recording and support for AutoChart Zero Line SD cards for virtually unlimited mapping capacity. The built-in Humminbird Basemap covers more than 10,000 lakes plus continental U.S. coastal waters, including buoys, day markers, hazards, marinas, contours, and depth markers.

In the Box:

• Control head
• XNT 9 HW SI T transom-mount transducer
• Power cable
• Gimbal mounting bracket
• Mounting hardware

Specifications:

• Display Size (Diagonal): 7"
• Display Pixel Matrix: 1024H x 600V
• Transducer Included: XNT 9 HW SI T
• Compatible With: Minn Kota US2 Sonar, AIS, AutoPilot
• Features: Down Imaging, Built-In GPS, Side Imaging, Dual Spectrum CHIRP, Built-In Mapping
• Memory Card Slot: Single Micro SD
• Sonar Standard: Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging
• Sonar Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
• Sonar Optional: 53 kHz, 50/Low Airmar CHIRP
• Live Sonar Coverage: 20° x 120°
• CHIRP Frequencies Supported: Narrow Mode (180–240 kHz), 83/200 (75–155/130–250 kHz), Wide Mode (140–200 kHz), Full Mode (150–220 kHz)
• Sonar Frequencies Supported: 50/83/200/455 kHz
• Depth — Sonar: 1,200 ft (standard transducer); up to 3,500 ft (optional 50 kHz)
• CHIRP Imaging Frequencies Supported: 455 kHz (420–520 kHz)
• Depth — Down Imaging: 400 ft (455 kHz)
• Side Imaging Range (Side-to-Side): 800 ft (455 kHz)
• Interface: Keypad / Softkey Control
• Power Draw: 800 mA
• Power Input: 10.8–20 VDC
• Power Output Peak-to-Peak: 4,000 W
• Power Output RMS: 500 W
• Screen Snapshot: Included
• Sonar Recording: Included
• Standard Mount: Gimbal
• Standard Mount Dimensions: 10.54 in W x 5.8 in H x 3.68 in D
• Optional Mount: In-Dash Mounting Kit
• Optional Mount Dimensions: 10.54 in W x 5.44 in H x 1.13 in D
• Warranty: 1-Year Limited
