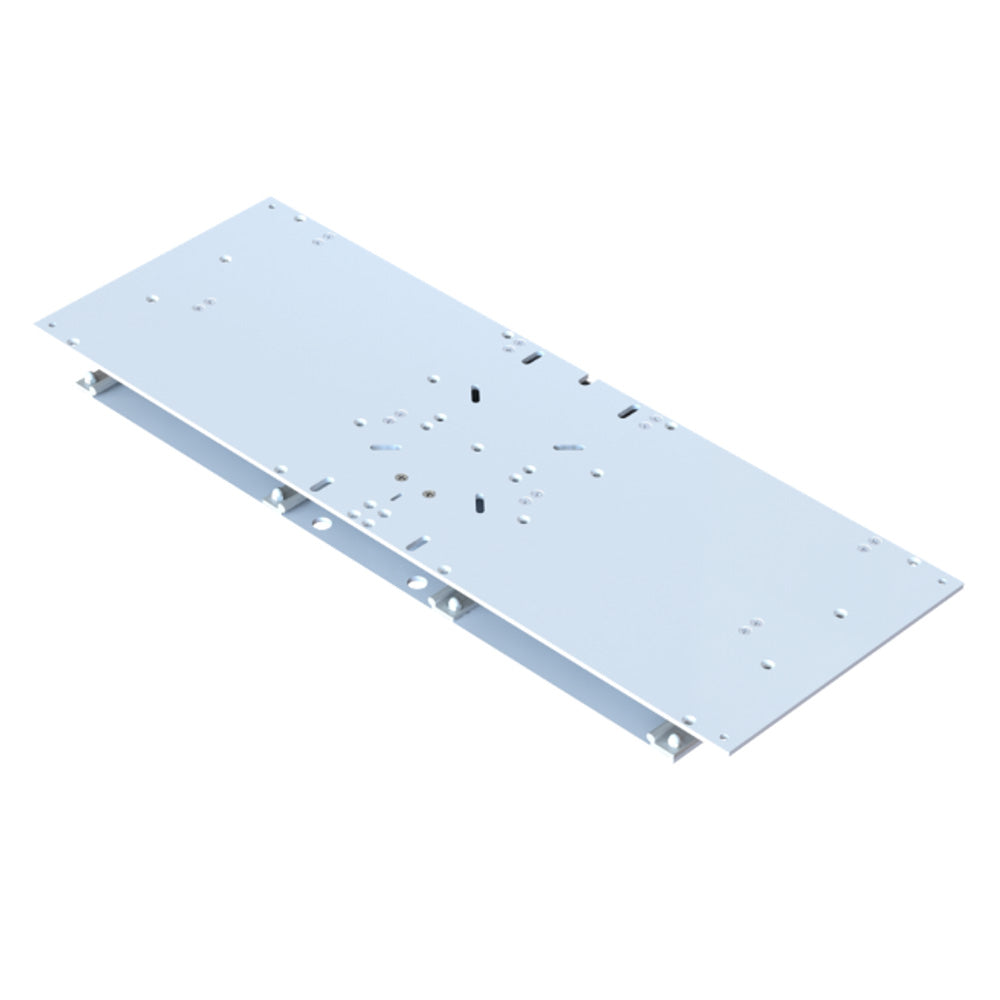

The TACO 13-1/8" x 36" Electric Seat Slide brings precision positioning to boat seating setups sized 41" to 54" wide. A 6000-series aluminum chassis and self-lubricating linear glide system deliver quiet, corrosion-free operation, while the electric actuator locks the seat at any point along its 5" travel range — no manual adjustment required.

Features:

• Fits seats 41" to 54" wide
• 5" of travel (stroke length) with stop-anywhere positioning
• Meets H31 testing standards for seat applications
• Precision-machined 6000-series aluminum chassis
• Self-lubricating, dirt-resistant, quiet, corrosion-free, lightweight, and shock-resistant rail/linear glide system
• Low-profile design with universal mounting bolt pattern for pedestal and box applications
• Quiet operation at or below 58 dB
• Electric actuator with self-locking capability at any position (at rated loads)
• Precision tolerances in the track/glide system eliminate racking in any direction
• Acid-etched clear anodized finish on all components
• Made in the USA
• 3-year limited warranty

Specifications:

• Voltage: 12V DC, 9A max current
• Max load: 3,500N
• Push and pull force: 1,500N
• IP66 rated
• Speed: 13.5 mm/sec at 1,500N

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Resources:

• Brochure (PDF)
