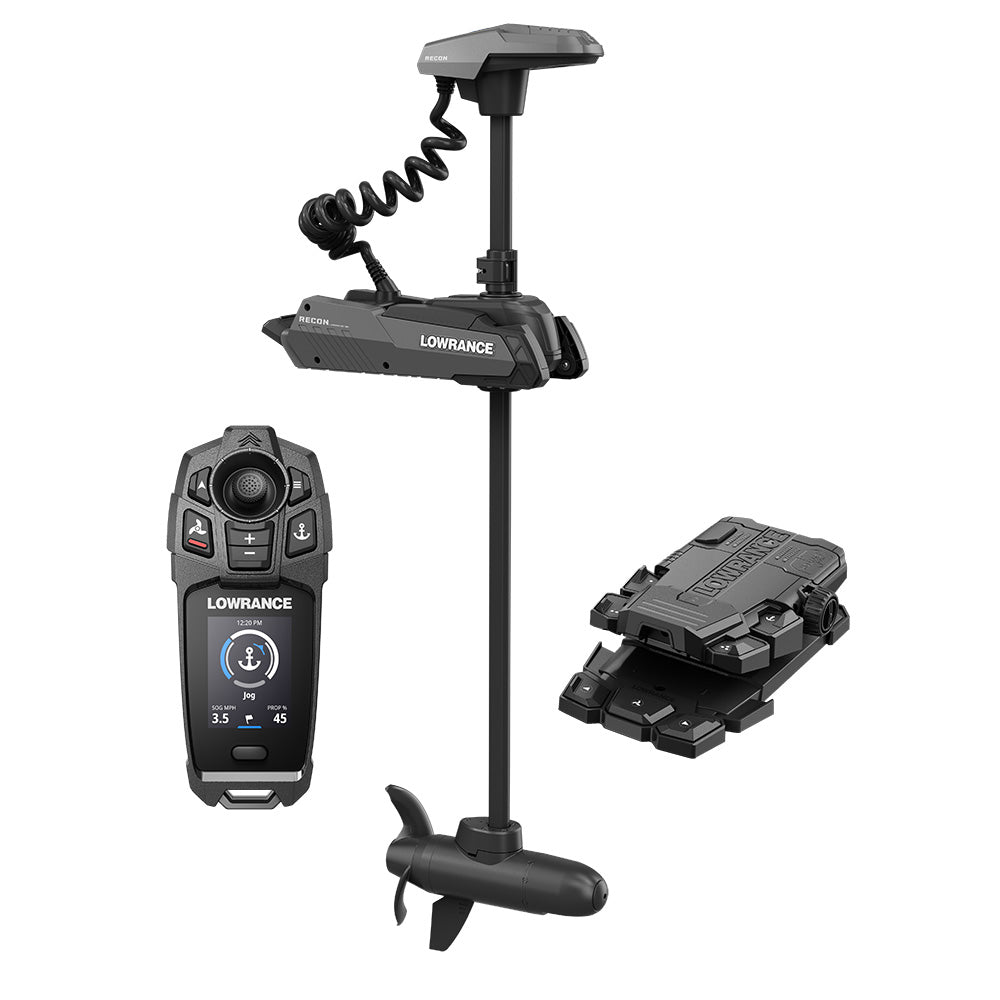

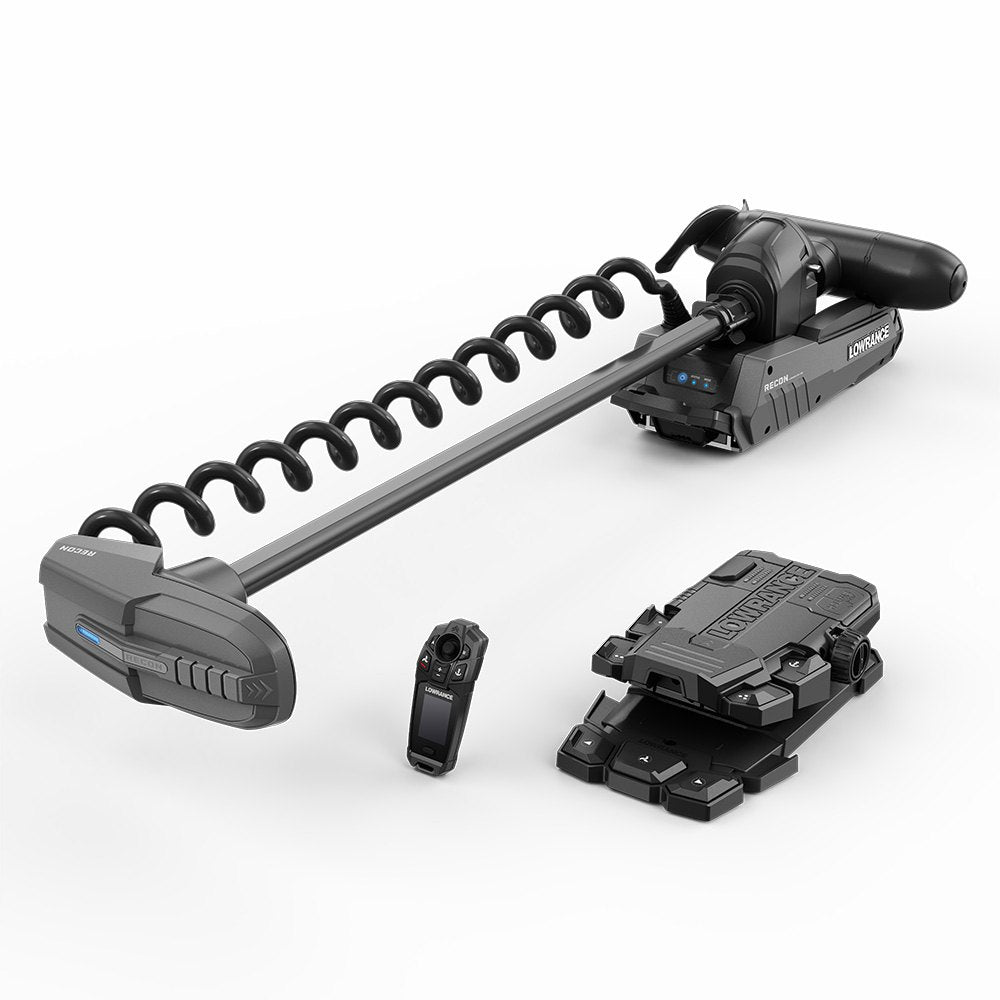

The Lowrance Recon FW trolling motor pairs a 72-inch carbon-fiber-infused composite shaft with precision GPS anchoring, brushless power, and Lowrance-pedigree HDI sonar in one freshwater-ready package. The FreeSteer joystick remote enables 8-direction diagonal jogs so you can reposition the boat without re-anchoring, while the included wireless foot pedal — with its detachable, programmable lower keypad — adds hands-free control from anywhere on deck. One-degree steering adjustments, best-in-class steering speed, and 40 degrees of heel-toe foot pedal travel give bass and freshwater anglers the kind of positional accuracy that changes how they fish.

Features:

• Best-in-class power output
• Precision GPS positioning and anchor mode
• Near-silent brushless 24V/36V motor
• Lightweight FreeSteer joystick remote with color LCD — enables 8-direction diagonal jogs
• Wireless, configurable foot pedal with detachable and programmable lower keypad
• HDI Nosecone included for noiseless subsurface sonar imaging
• Plug-and-play upgradeable nosecone — optional Active Imaging 3-in-1 upgrade available
• Multiple accessory mounting points on motor head
• One-hand cam lock depth collar for on-the-go depth adjustments
• LED indicators and backlit controls for low-light visibility
• NMEA 2000 connectivity
• User-serviceable design with diagnostic error codes visible on remote, mobile app, or display
• Lifetime shaft warranty; 3-year motor warranty

Specifications:

• Shaft Length: 72"
• Shaft Material: Carbon-fiber-infused composite — lifetime warranty
• Maximum Thrust: 120 lbs. @ 36V; 97 lbs. @ 24V
• Supply Voltage: 24V or 36V
• Motor Type: Brushless
• Steering Modes: Wireless foot pedal and FreeSteer joystick remote
• Steering Adjustment: 1-degree increments; best-in-class steering speed
• Foot Pedal Heel-Toe Travel: 40 degrees
• FreeSteer Remote Jog Directions: 8 (including diagonal)
• Compass Sensor: Internal
• Maneuvers / Turn Patterns: Yes
• Sonar: HDI Nosecone (Medium/High CHIRP, 455/800 kHz)
• MFD Compatibility: Full display integration; NMEA 2000 connected
• Mounting Type: Pivot style
• Dimensions (Motor Head): 11¾" L × 7¼" W × 4½" D
• Waterproof Rating: IPX7
• Warranty: 3-year motor warranty; lifetime shaft warranty

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
