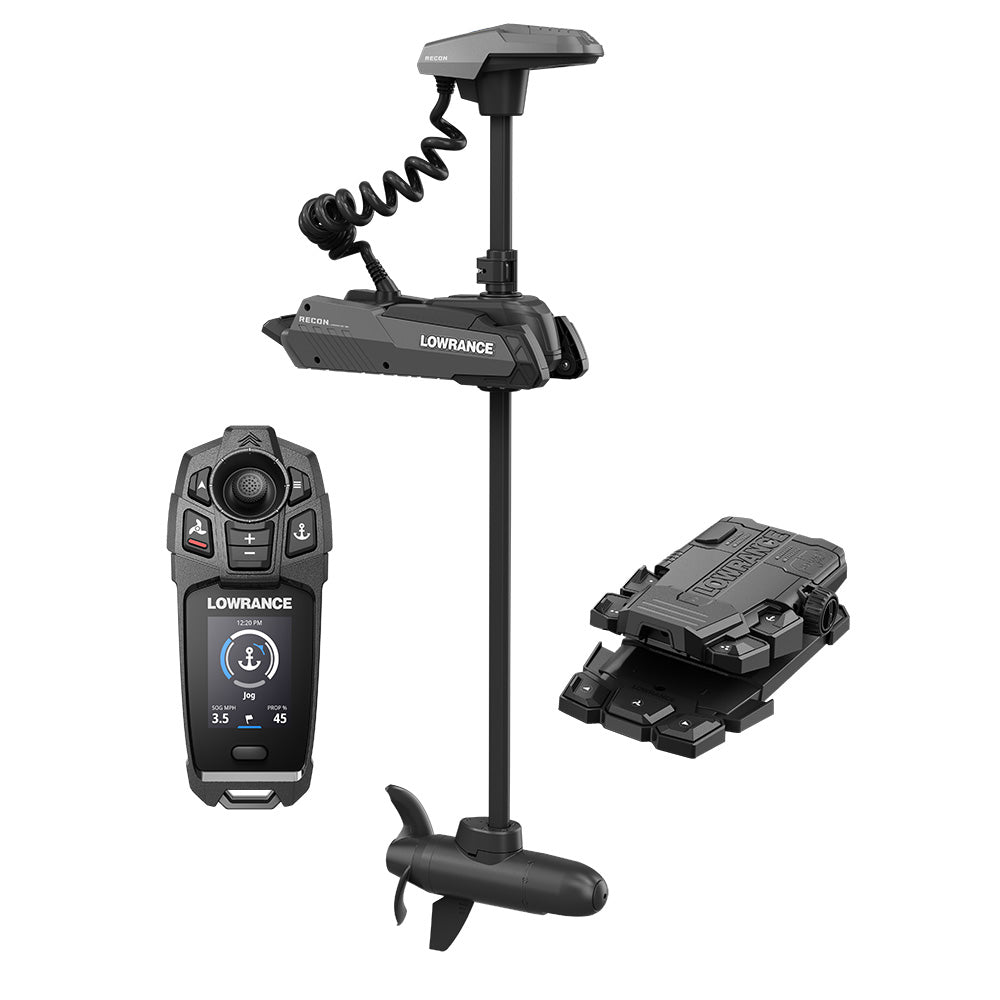

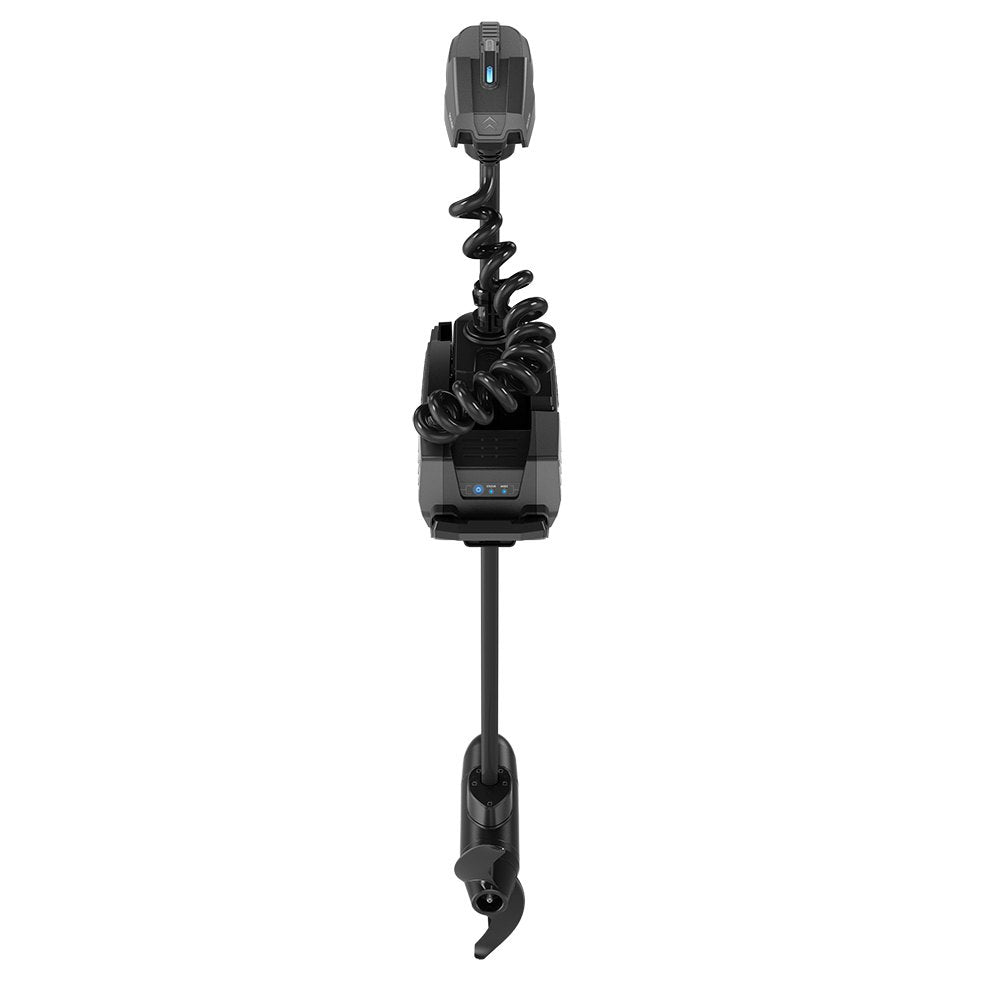

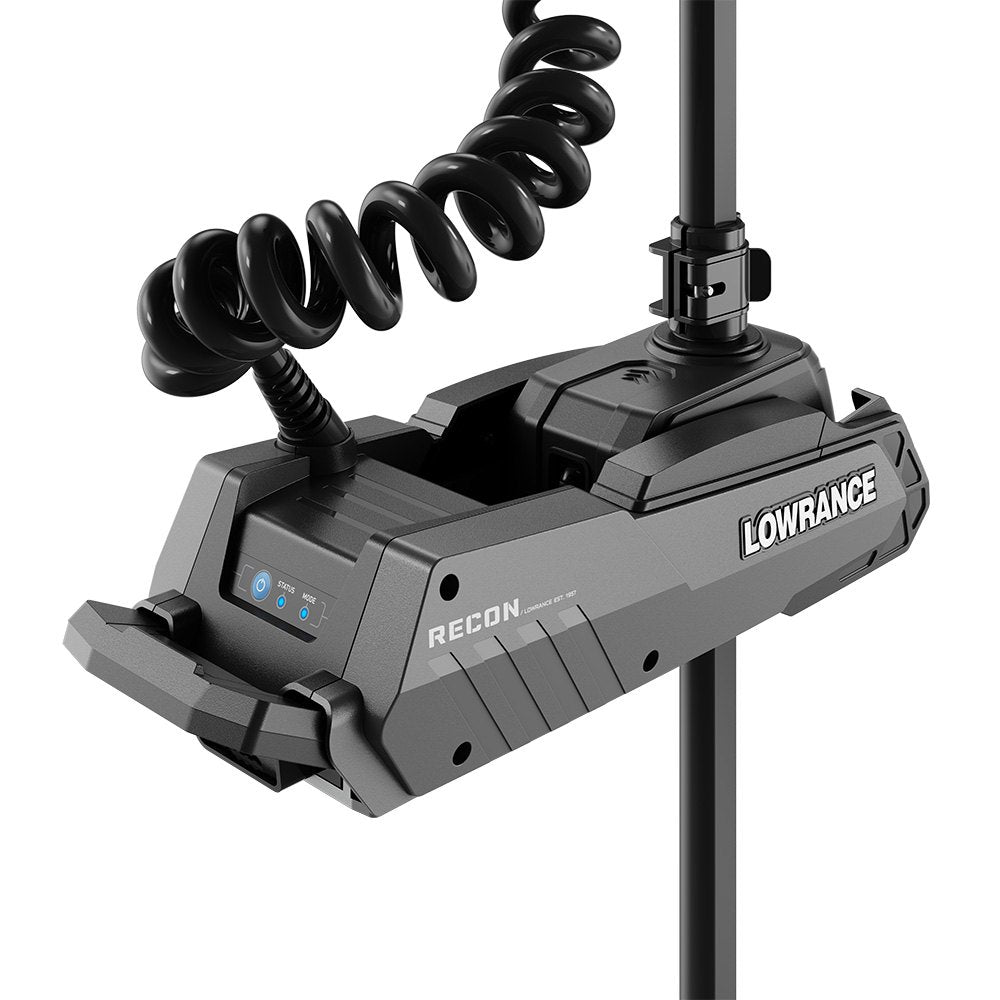

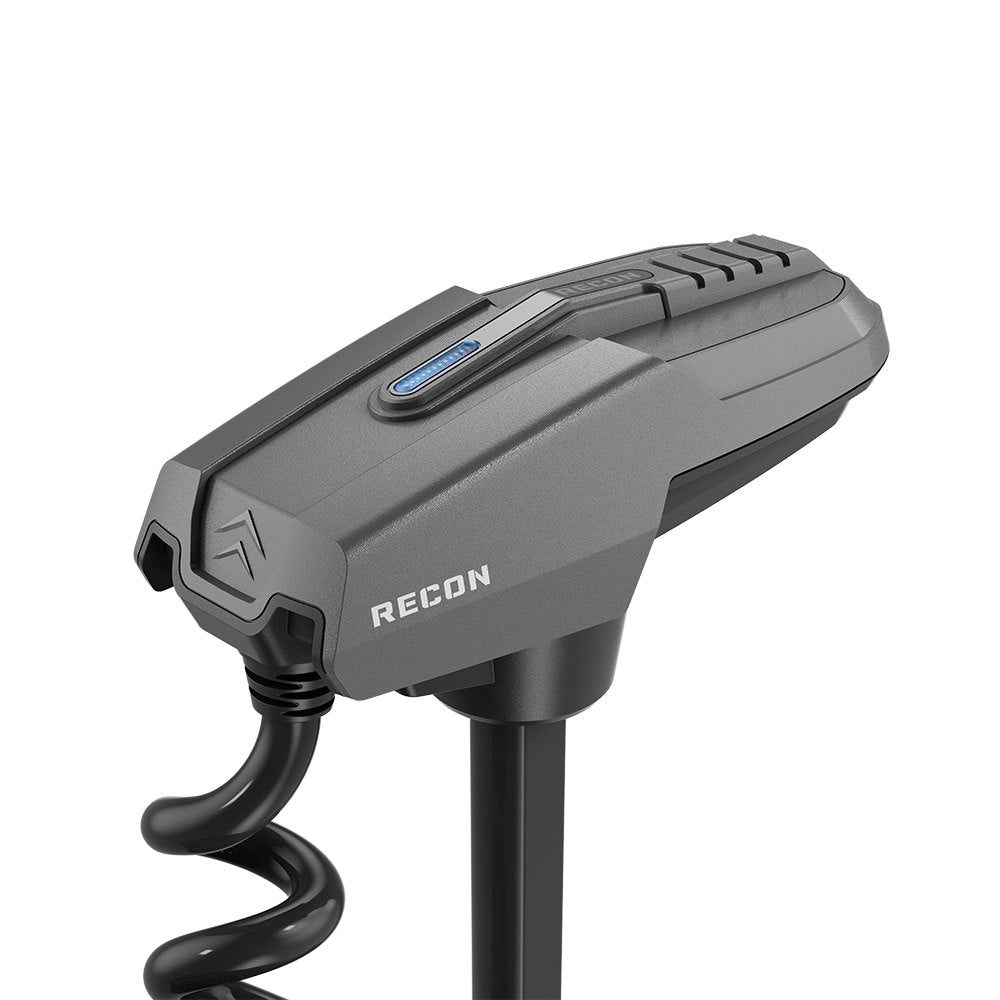

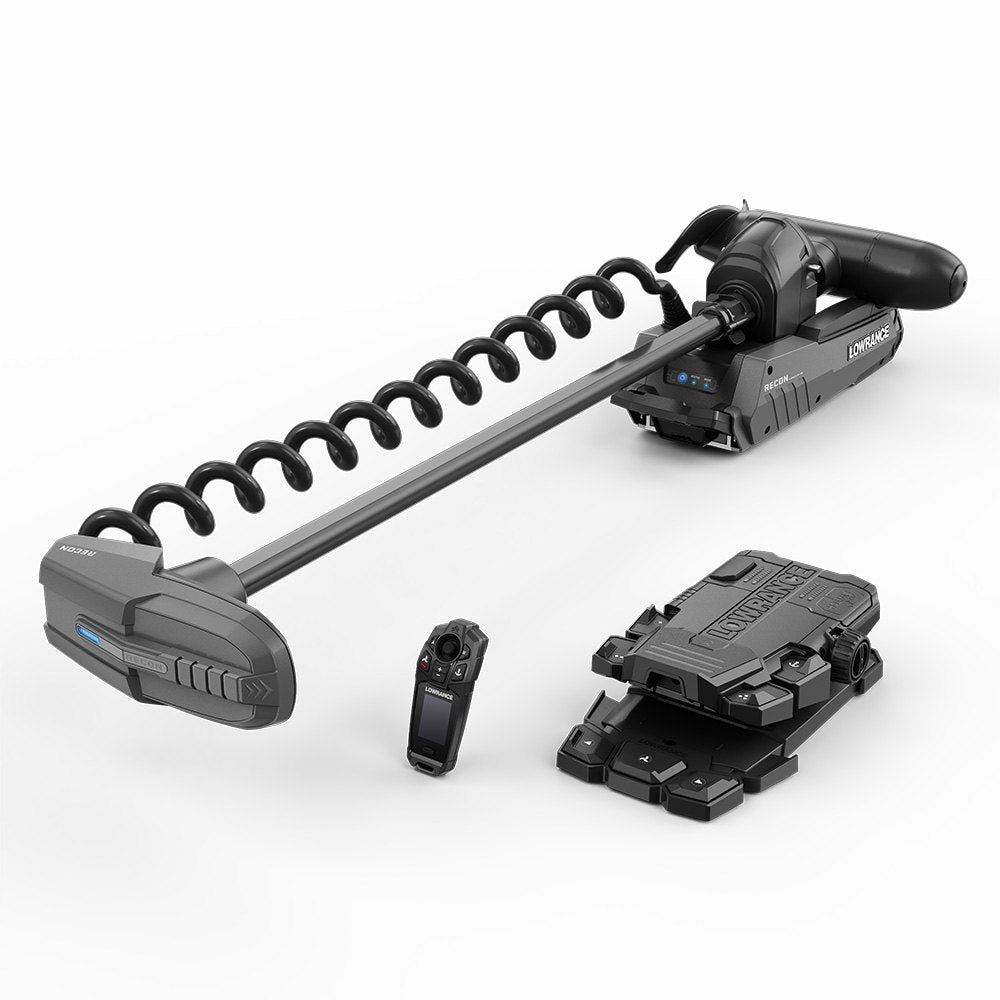

The Lowrance Recon FW trolling motor combines precision GPS positioning with best-in-class brushless power in a freshwater-ready package built for serious bass and tournament anglers. The 54-inch shaft pairs with the FreeSteer joystick remote, a wireless foot pedal, and an HDI nosecone, giving you noiseless sonar imaging and hands-free boat control from anywhere on deck. A carbon-fiber-infused composite shaft carries a lifetime warranty, and the user-serviceable design with on-screen diagnostic error codes keeps downtime to a minimum.

Features:

• Best-in-class power with near-silent brushless 24V/36V motor
• Precision GPS positioning with autopilot maneuvers and turn patterns
• FreeSteer joystick remote enables diagonal jogs in 8 directions for anchor-free repositioning
• Wireless, configurable foot pedal with detachable and programmable lower keypad; 40 degrees of heel-toe travel
• 1-degree steering adjustments and best-in-class steering speeds
• HDI Nosecone included for Lowrance-pedigree sonar imagery; plug-and-play upgradeable to Active Imaging 3-in-1
• NMEA 2000 connectivity and full display integration
• Multiple accessory mounting points
• One-hand cam lock depth collar for on-the-go depth adjustments
• LED indicators and backlit controls for low-light visibility
• Lifetime shaft warranty; 3-year motor warranty

Specifications:

• Shaft Length: 54 inches
• Maximum Thrust: 120 lbs. @ 36V; 97 lbs. @ 24V
• Supply Voltage: 24V or 36V
• Compass Sensor: Internal
• Steering Modes: Wireless foot pedal and remote
• Maneuvers / Turn Patterns: Yes
• Sonar: HDI Nosecone (Medium/High CHIRP, 455/800 kHz)
• Waterproof Rating: IPX7
• Mounting Type: Pivot style
• Dimensions: 11¾" L x 7¼" W x 4½" D
• Warranty: 3-year motor warranty; lifetime shaft warranty

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
