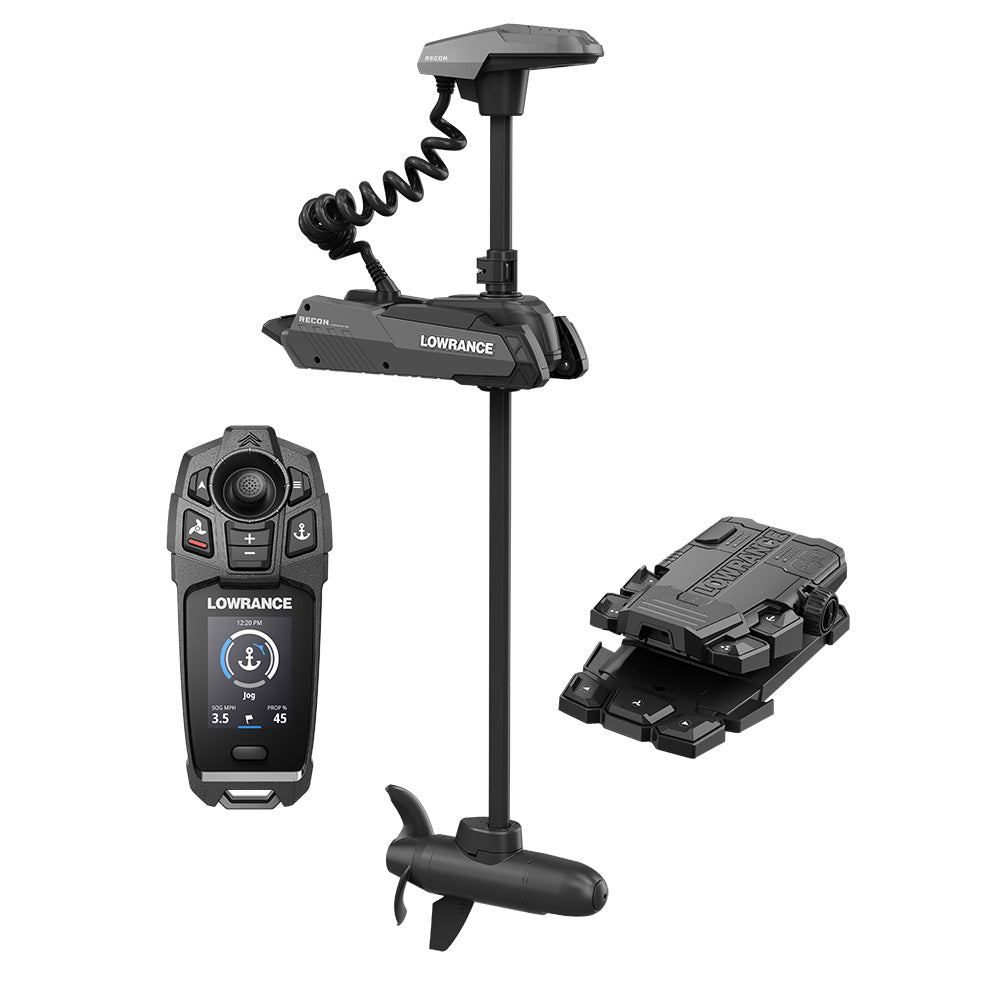

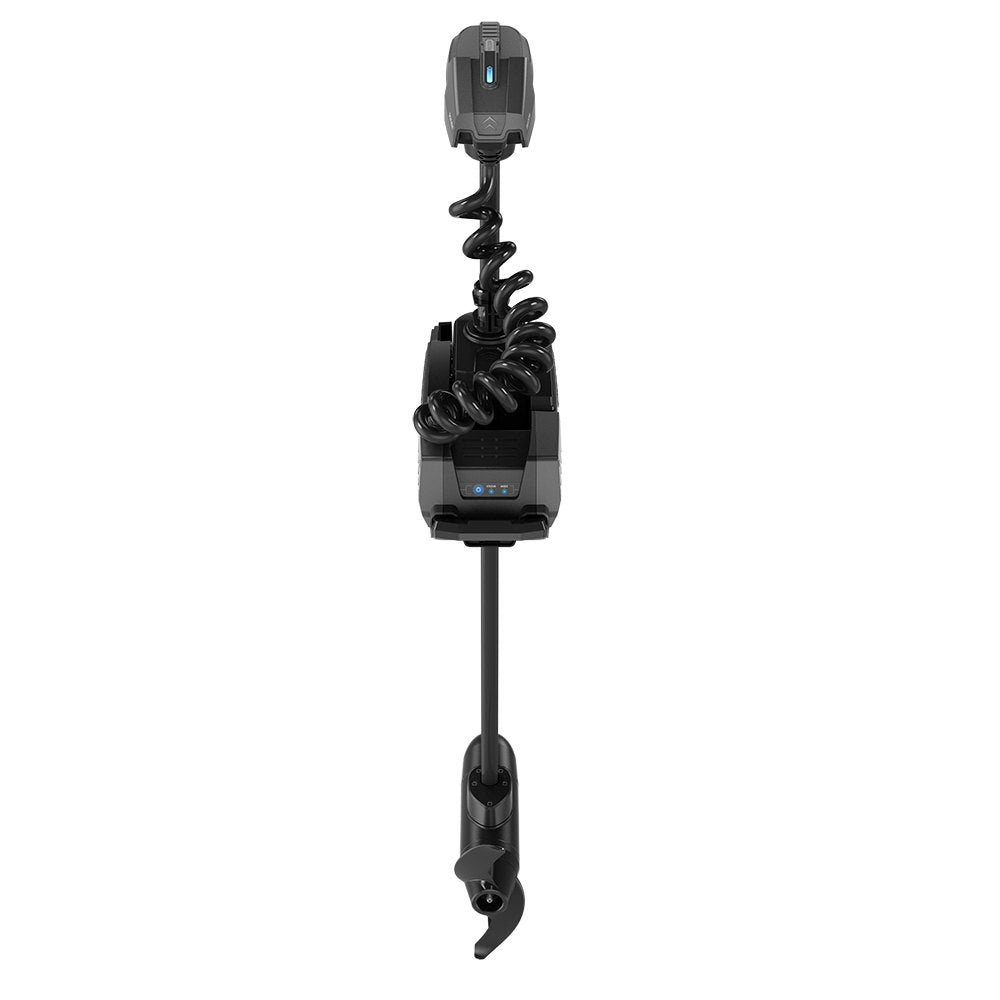

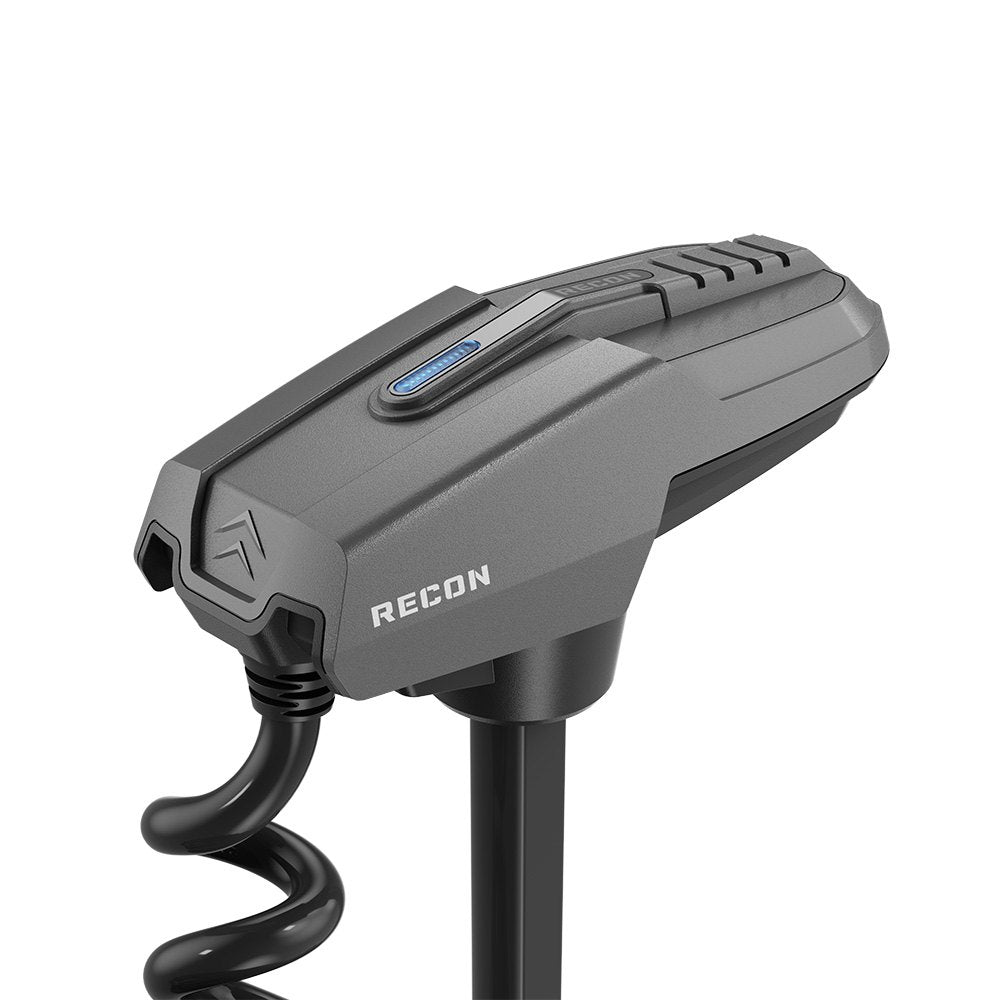

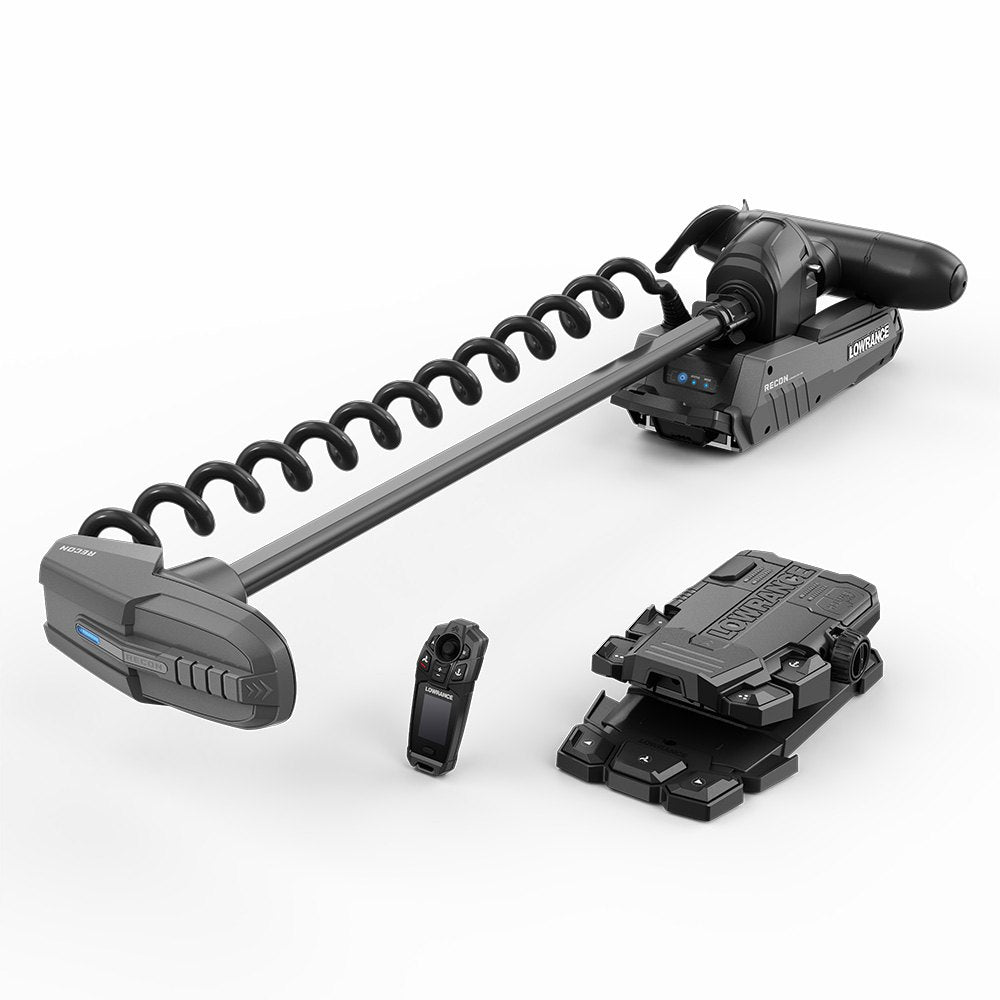

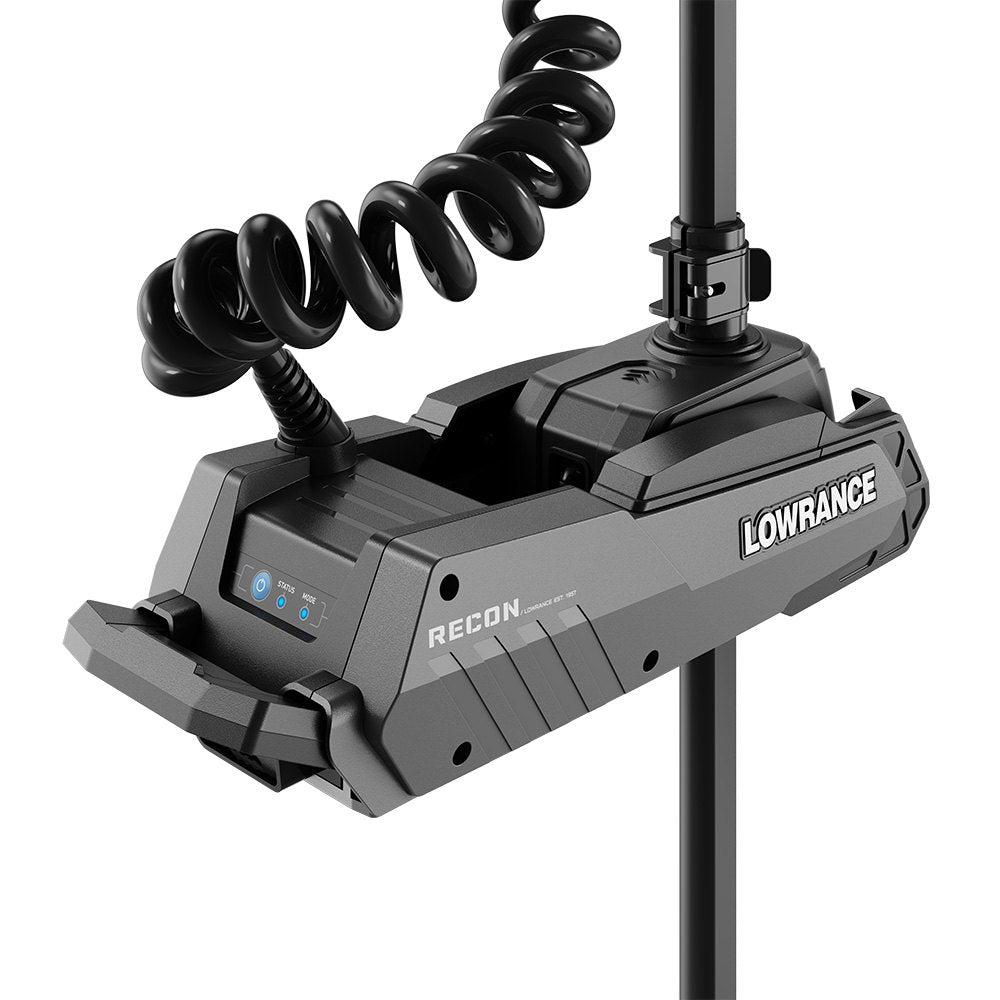

The Lowrance Recon FW trolling motor pairs a carbon-fiber-infused composite shaft with precision GPS anchoring and Lowrance-pedigree HDI sonar — all packed into a freshwater bow-mount built for anglers who demand reliable control from anywhere on the boat. The 48-inch shaft model ships complete with the FreeSteer joystick remote, a wireless configurable foot pedal, and an HDI nosecone ready to deliver quiet, clear underwater imaging.

FreeSteer technology gives the joystick remote the ability to execute diagonal jogs in eight directions, letting anglers shift anchor position without re-anchoring the boat. One-degree steering adjustments and best-in-class steering speeds add pinpoint precision, while the foot pedal delivers 40-degree heel-to-toe travel for intuitive hands-free maneuvering. Full display integration via NMEA 2000 means control is available from a chartplotter or the Lowrance mobile app as well. The HDI nosecone is plug-and-play upgradeable to Active Imaging 3-in-1 sonar for expanded underwater views. Practical details round out the package: multiple accessory mounting points, a one-hand cam-lock depth collar for on-the-fly depth changes, and LED indicators with backlit controls for low-light fishing. Diagnostic error codes appear on the remote, app, or connected display to simplify troubleshooting. The carbon-fiber-infused shaft carries a lifetime warranty; the motor itself is covered for three years.

Specifications:

• Maximum Thrust: 120 lbs. @ 36V; 97 lbs. @ 24V
• Supply Voltage: 24V or 36V
• Motor Type: Near-silent brushless 24V/36V
• Shaft Length: 48 inches
• Mounting Type: Pivot style
• Dimensions: 11¾" L x 7¼" W x 4½" D
• Waterproof Rating: IPX7
• Compass Sensor: Internal
• Steering Modes: Wireless foot pedal and joystick remote
• Steering Adjustment: 1-degree increments
• Foot Pedal Heel-to-Toe Travel: 40 degrees
• Jog Directions: 8 (including diagonal)
• Sonar: HDI Nosecone (Medium/High CHIRP, 455/800 kHz)
• Nosecone: Plug-and-play upgradeable (Active Imaging 3-in-1 optional)
• Connectivity: NMEA 2000
• Remote: FreeSteer lightweight joystick with color LCD
• Foot Pedal: Wireless, configurable with detachable programmable lower keypad
• Accessory Mounting Points: Multiple
• Depth Collar: One-hand cam-lock
• Shaft Material: Carbon-fiber-infused composite
• Shaft Warranty: Lifetime
• Motor Warranty: 3 years

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
