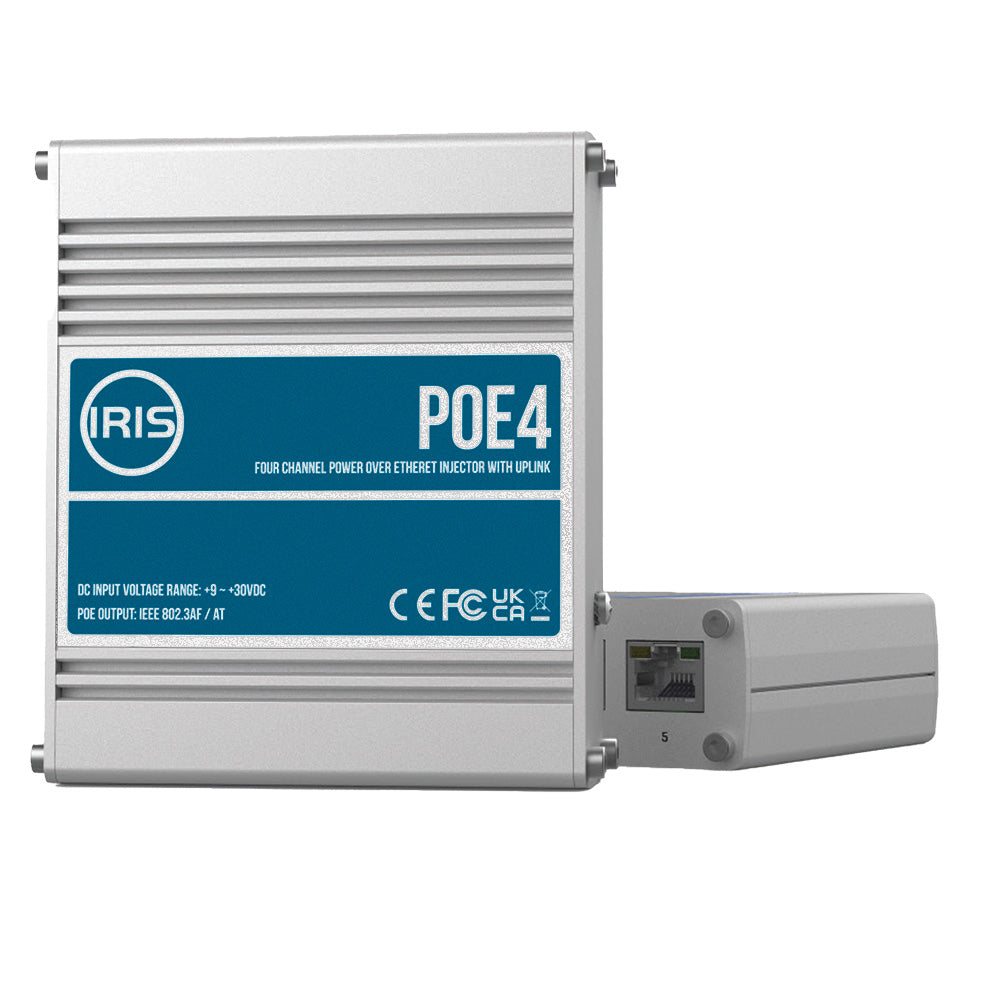

<p><strong>Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af & 3at Compliant - 9-30VDC Input - 48VDC Output<br></strong></p><p>The new PoE4v2 from Iris Innovations is a four-channel plus uplink power over Ethernet switch that operates over a wide DC input voltage range of 930VDC making it perfect for powering IEEE802.3af/3at devices from battery sources such as boats and vehicles.</p><p>The PoE4v2 outputs 48 VDC to your PoE device with a power budget of 60W in total and up to 30W per port, providing power to up to 4 devices at 15W each, 2 devices at 30W each, or 1 device at 30W, and further 2 devices at 15W.</p><p>The unit features a passive uplink port to enable connections to other network switch equipment, routers, or modems.</p><p>The PoE4v2 simplifies your installation as only a single network cable is required to connect and power your devices, reducing cost and adding convenience.</p><p><strong>Features:</strong></p><ul><li>Compact and robust housing</li><li>Wide input voltage range of 930VDC</li><li>Perfect for boats and vehicles</li><li>60W power budget</li><li>IEEE802.3af / 3at compliant</li><li>Up to 30W per channel</li><li>Plug and play operation - no configuration required</li><li>48VDC PoE output voltage to your devices</li><li>Provides power to devices up to a 100-meter cable length</li><li>Simplifies installations</li></ul><p><strong>Specifications:</strong></p><ul><li>Weight & Dimensions: 0.350 Kg / 115 mm x 32 mm x 95 mm</li><li>Material: Aluminium, soft anodized</li><li>PoE Ports / Standard: Ports 14 IEEE802.3af / 802.3at + 1 Uplink Port (non PoE)</li><li>Total PoE Budget: 60W across 4 PoE Ports</li><li>Maximum Cable Length: 100 Meters</li><li>Approvals / Standards CE, UKCA, FCC, IC, REACH, RoHS, WEEE / EN IEC 62368:12020+A11:2020 EN60945:2002 Section 9 & 10</li><li>Input Voltage Range: 9 30 VDC</li><li>Output Voltage: 48 VDC</li><li>Power Consumption Idle: 0.8W / Max: 2.2W / PoE Max: 106W</li><li>Environmental: IP30 - Install in a dry dust free environment. Do not expose to moisture.</li></ul><strong>This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.</strong> <!--- cis2:m2lumJ1t --->
