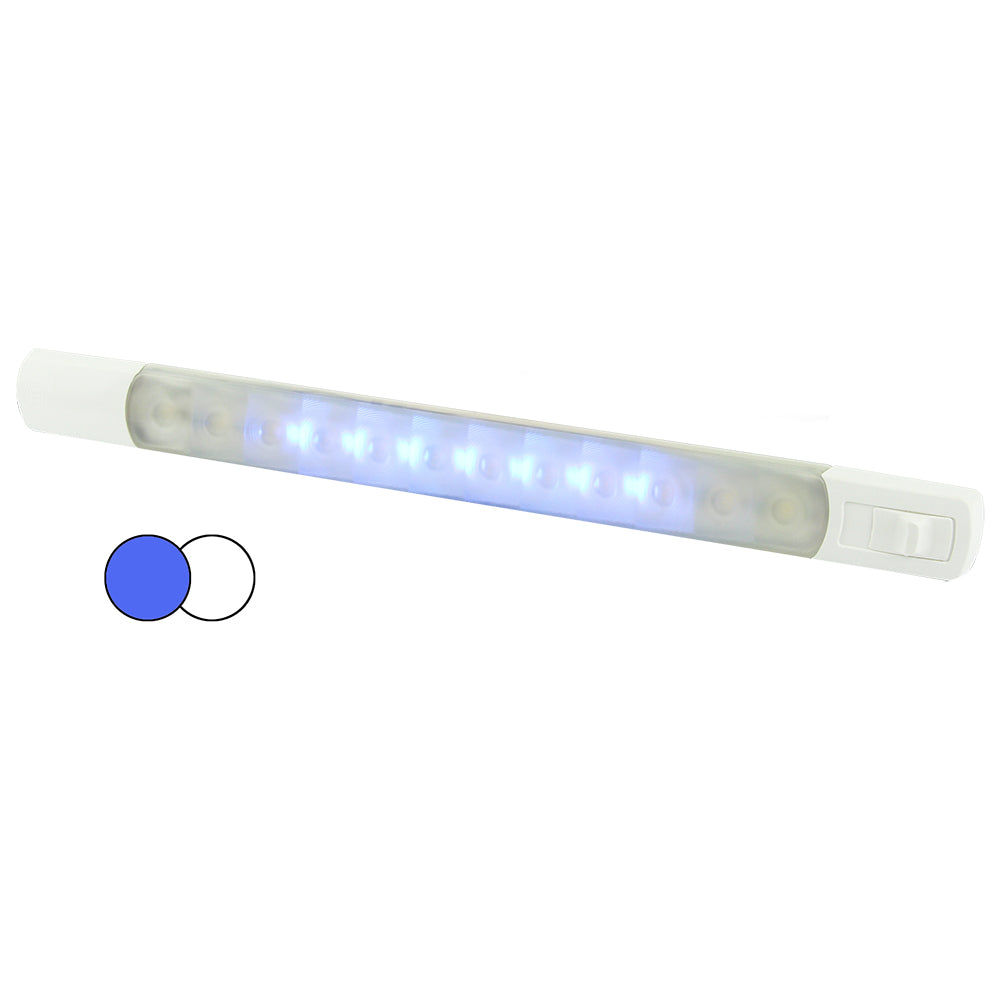

The Hella Marine Surface Strip Light combines white and blue LEDs in a completely sealed, ultra-low-profile housing built for the demands of the marine environment. Waterproof construction, UV-resistant acrylic, and an integrated sealed switch make it equally at home above a chart table, over a bait board, along a bulkhead, or under a gunwale — indoors or out. At under 3W and 250 lumens with a CRI of 85, it delivers bright, color-accurate light while drawing minimal current, and a 5-year warranty backs every fixture.

Specifications:

• Lens Material: UV-resistant enhanced-impact acrylic
• LED Colors: White and Blue
• Color Temperature: 5000K (White) / 2700K (Warm White)
• Light Output: 250 lumens (White)
• CRI: 85
• Power Consumption: <3.0W (<0.25A @ 12V / <0.16A @ 24V)
• Operating Voltage: 12V DC or 24V DC
• Dimming: Compatible with Hella Marine Dimmer 5XA 998 572-001
• Cable: Pre-wired with 500mm twin-core cable
• Switch: Integrated waterproof sealed switch
• Degree of Protection: IP67 — Completely Sealed
• Installation: Surface mount with fastenings at each end covered by snap-on end caps
• Weight: 75g (including cable)
• Approvals: CE
• Warranty: 5 years

Resources:

• Installation Guide (PDF)
• Brochure (PDF)
