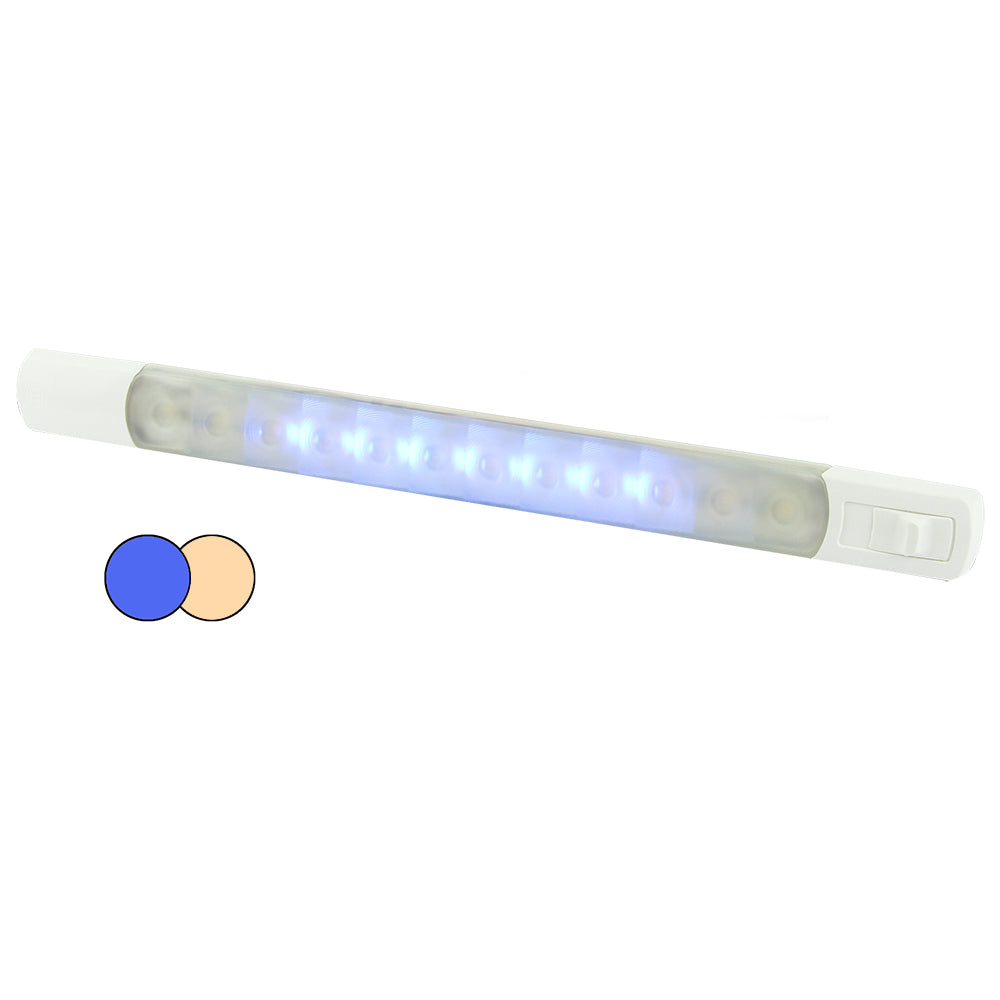

The Hella Marine Surface Strip Light combines warm white and blue LEDs in a fully sealed, ultra-low-profile housing built for the demands of the marine environment. Rated IP67 and constructed from UV-resistant impact acrylic, this strip light installs easily on any flat surface — interior or exterior, wet or dry — and draws less than 3 watts while delivering 250 lumens with a CRI of 85 for bright, accurate color rendering. A waterproof integrated switch keeps moisture and contaminants out of the electronics, and snap-on end caps over the fastening points give the finished installation a clean, modern look. Backed by a 5-year warranty, it suits chart tables, bench tops, bulkheads, bait boards, and countless other onboard applications.

Specifications:

• Lens Material: UV-resistant enhanced impact acrylic
• Color Temperature: 5000K (White) / 2700K (Warm White)
• Light Output: 250 lumens (White)
• CRI: 85
• Power Consumption: <3.0W (<0.25A @ 12V / <0.16A @ 24V)
• Operating Voltage: 12V DC or 24V DC
• Dimming: Compatible with Hella Marine Dimmer 5XA 998 572-001
• Cable: Pre-wired with 500mm twin-core cable
• Degree of Protection: Completely sealed IP67
• Installation: Surface mount
• Weight: 75g (including cable)
• Approvals: CE
• Warranty: 5 years

Resources:

• Installation Guide (PDF)
• Brochure (PDF)
