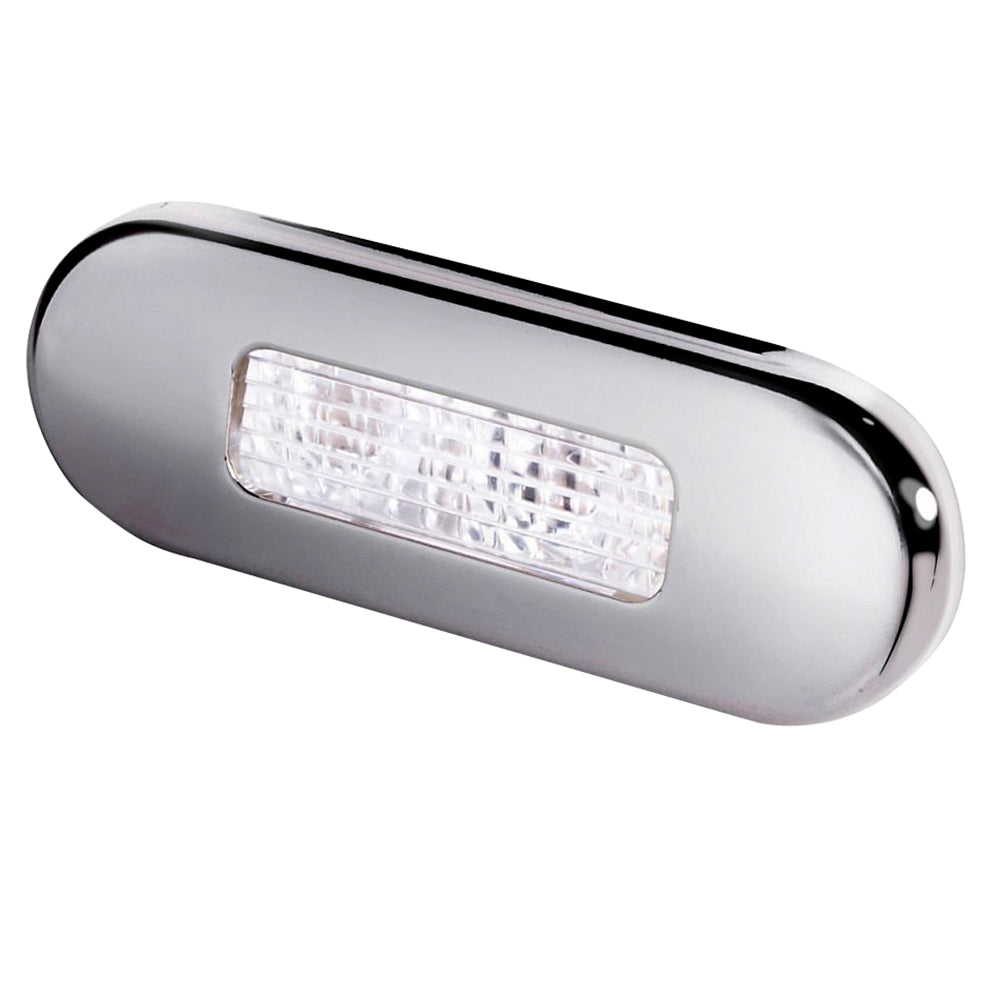

The Hella Marine Surface Mount Oblong LED Courtesy Lamp delivers reliable, low-draw illumination in a fully sealed package rated IP 67 -- suitable for wet or dry installation anywhere on a vessel's interior or exterior. The general-courtesy version spreads light equally in the vertical plane, while step-lamp versions use engineered optics to direct output 30° downward, keeping deck and step tread surfaces safely lit without glare in the eyes. Each unit ships with a polished 316 stainless steel bezel plus both black and white plastic end caps, and the multivolt driver accepts 12 V or 24 V DC without modification.

Specifications:

• Lens Material: UV- and impact-resistant Grilamid (enhanced)
• Rim Material: Polished 316 stainless steel bezel included
• Cable: Pre-wired with 120 mm of marine-grade cable
• Operating Voltage: Multivolt 12/24 V DC
• Power Consumption: 0.5 W (less than 0.04 A at 12 V / less than 0.02 A at 24 V)
• Degree of Protection: IP 67 -- completely sealed
• Mounting: Stainless steel screws included
• Weight: 35 g (including cable)
• Approvals: CE certified

Resources:

• Brochure (PDF)
