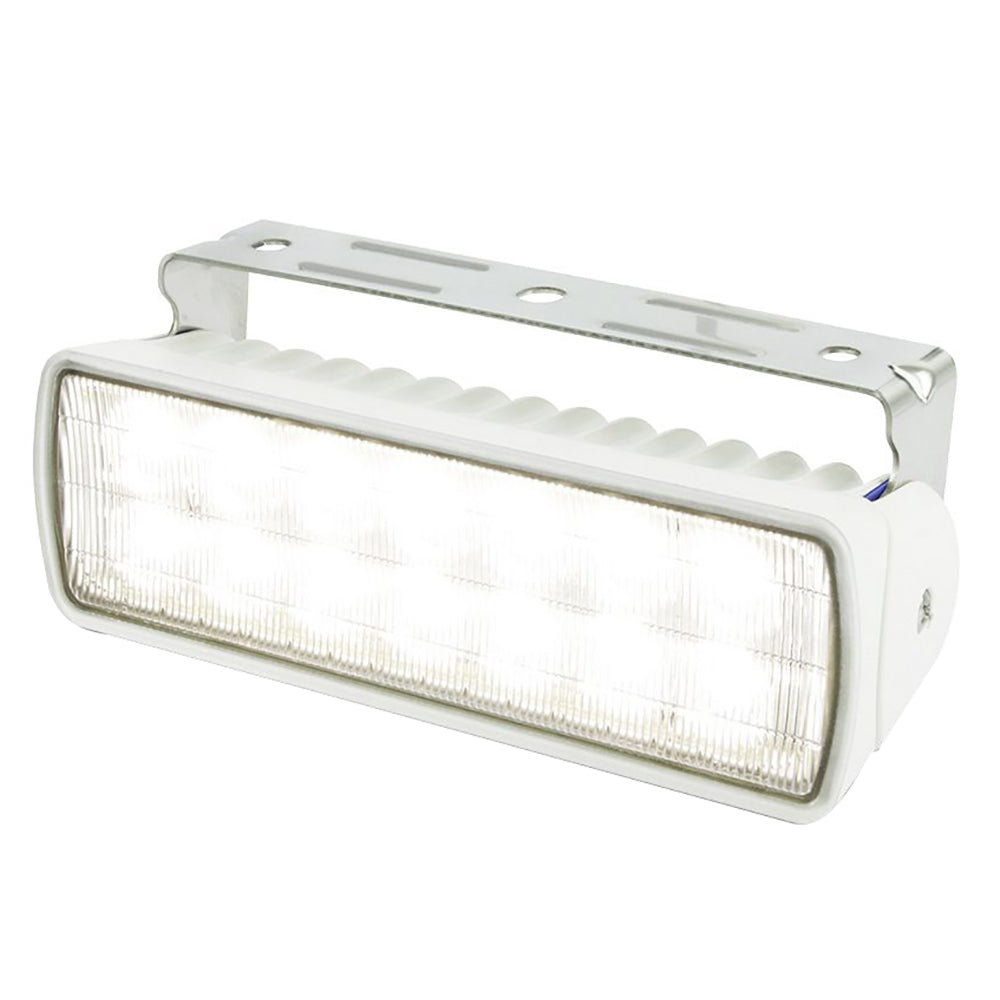

The Hella Marine Sea Hawk-XLR is the brightest LED floodlight in the Sea Hawk lineup, delivering 1300 lumens of crisp 5000K white light through advanced optics engineered to maximize illumination while eliminating glare. A thermally conductive ceramic polymer housing replaces aluminum entirely, pulling heat away from internal electronics and standing up to the corrosive demands of the marine environment without compromise. Built-in high/low dimming and wide Multivolt 9–33V DC compatibility round out a fixture built for long-term reliability on any vessel.

Specifications:

• Housing: Non-metal thermally conductive ceramic polymer
• Lens Material: Grilamid
• Bracket: Polished 316 stainless steel
• Color Temperature: 5000K (White)
• Light Output: 1300 lumens
• Cable: Pre-wired with 0.5 m triple-core marine cable
• Operating Voltage: Multivolt™ 9–33V DC
• High Power Consumption: 18W (less than 1.5A @ 12V / less than 0.75A @ 24V)
• Low Power Consumption: 2W (less than 0.17A @ 12V / less than 0.08A @ 24V)
• Degree of Protection: IP67 — Completely Sealed
• Weight: 450 g (including cable)
• Integrated Dimming: High (full intensity) and Low switchable output
• Approvals: CE, RCM
• Manufactured In: New Zealand

Resources:

• Installation Guide (PDF)
• Brochure (PDF)
