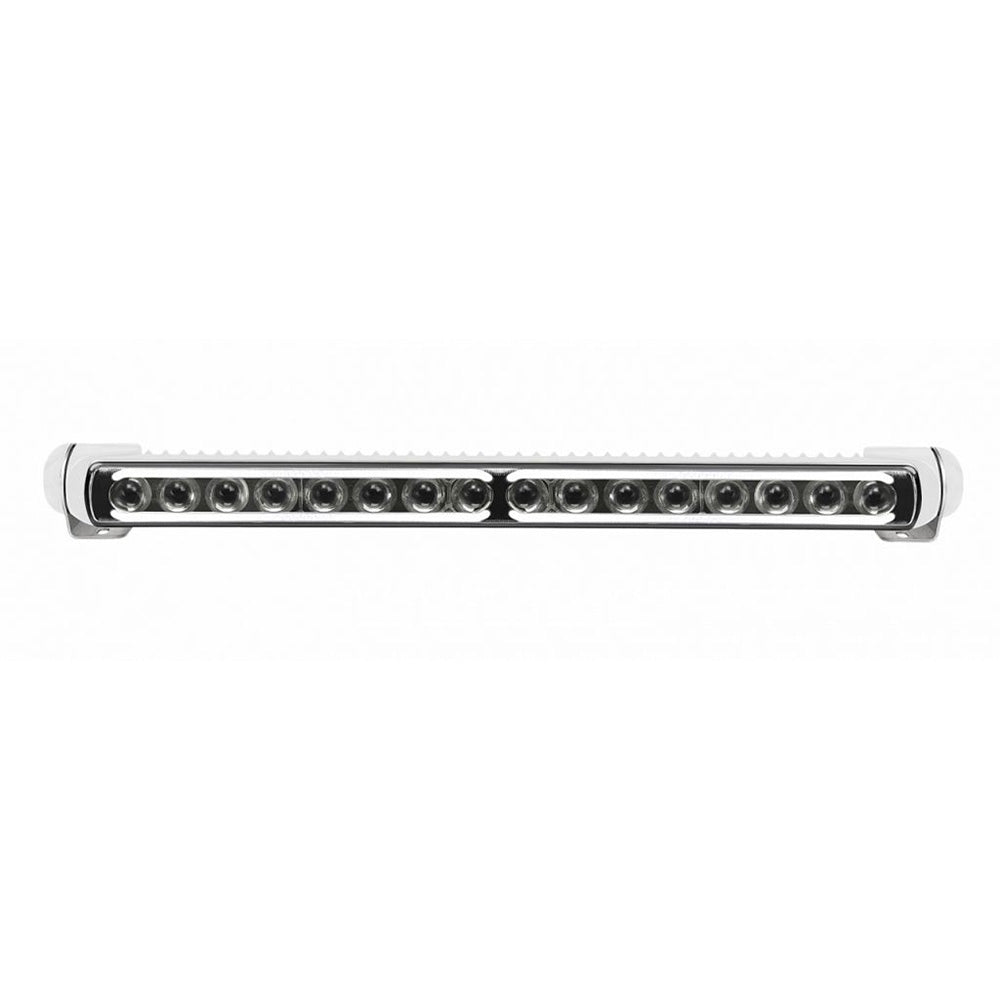

The Sea Hawk-470 Pencil Beam Light Bar delivers exceptional long-range illumination alongside an integrated white edge light that gives any vessel a distinctive glowing signature and soft ambient fill. Built on Hella Marine's proven corrosion-proof thermally conductive polymer housing and covered by a 5-year warranty, this New Zealand-designed bar pairs a heavy-duty Grilamid® lens — resistant to impact, UV, chemicals, and pressure washing — with Multivolt™ circuitry for straightforward 12V or 24V installation. When reliable visibility at distance matters most, the Sea Hawk-470 is a dependable choice for offshore and coastal passages.

Specifications:

• Housing color: White with white edge light
• Mounting: Upright or pendant — adjustable bracket for flexible orientation
• Voltage: Multivolt™ 12/24V DC
• Max power consumption — Pencil Beam: 36W (2.7A @ 12V / 1.4A @ 24V); Edge Light: 4W (300mA @ 12V / 150mA @ 24V)
• Maximum luminous intensity: 113,000 candela
• Light performance: 1 lux @ 330m
• Beam angle: 8° x 4°
• Protection: Reverse polarity and transient spike protection; IP 6K7 (dust-proof and temporary water immersion); IP 6K9K (dust-proof and high-pressure/steam jet cleaning)
• Cable: Pre-wired with 2.5m tinned multi-core cable
• Lens material: Heavy-duty Grilamid® — impact-tough, long-term UV stable, chemical resistant, retains clarity over product life
• Bracket material: Polished 316 stainless steel
• Compliance: CE, ECE R10, UKCA
• Warranty: 5 years
• Designed and manufactured in New Zealand

Resources:

• Installation Guide (PDF)
